Basic Info
Model No.: EX1100
Brand: Wenpeng
Applicable Industry: Building Material Shops, Machinery Repair Shops, Farms, Construction Works, Energy &Amp; Mining, Other
Out-of-warranty Service: Video Technical Support, Online Support
Place Of Origin: China
Status: New
Exercise: Crawler Excavator
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Operating Mass: 108T
Bucket Capacity: 6m³
Additional Info
Productivity: 100set/month
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 100sets/month
Certificate: CE
Port: Qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product Description

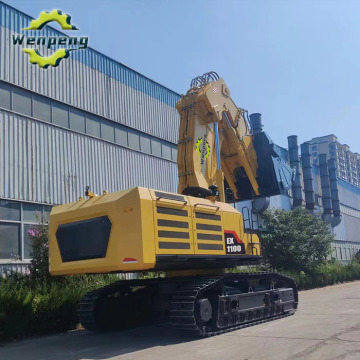

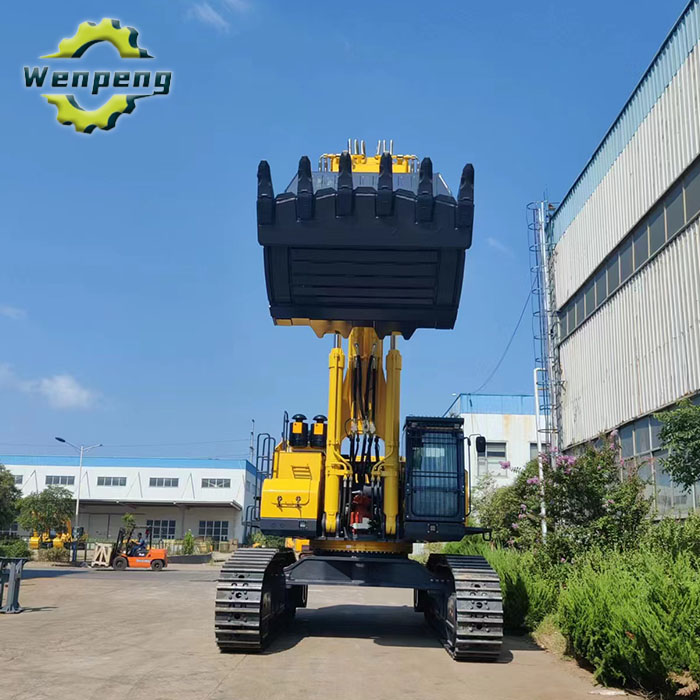

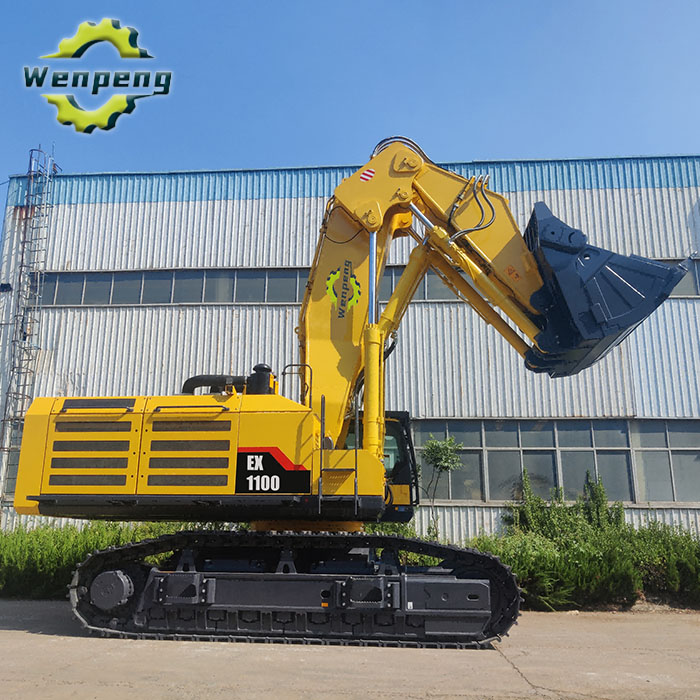

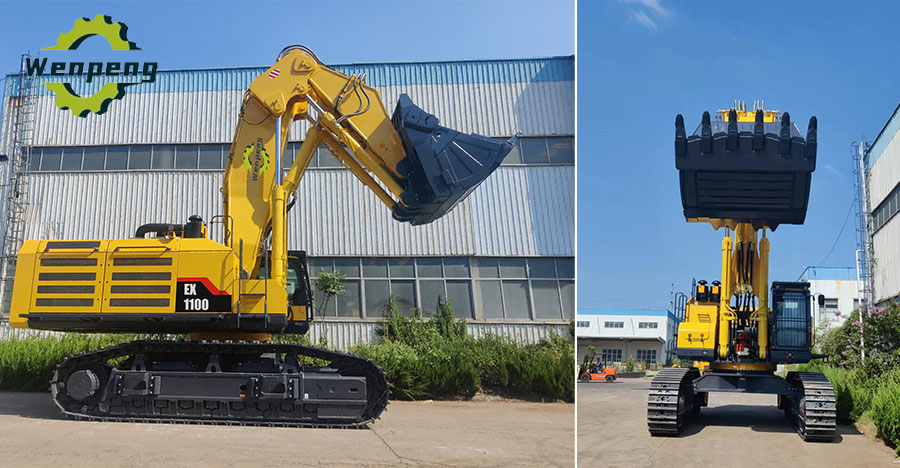

The 108-ton large crawler earthmoving excavator is equipped with a 6m³ bucket capacity, featuring powerful digging ability and efficient operating performance, making it ideal for heavy earthmoving construction. Wenpeng Machinery offers direct sales with reliable product quality, CE compliant. We provide a wide range of construction machinery such as excavators, bulldozers, loaders, and more, offering comprehensive construction equipment solutions. Please feel free to contact us for a quote!
Model | EX1100 |
---|---|
Engine Model | Scania DC16 |
Working Mass | 108T |
Bucket Capacity | 6m³ |
Power | 574/2000kw/r/min |
Fuel Tank Volume | 1300L |
Travel Speed (High/Low) | 3.53/2.39 km/h |
Swing Speed | 6.5 r/min |
Gradeability | 35% |
Digging Force of Bucket | 712KN |
Digging Force of Stick | 442KN |
Specific Pressure of Ground Contact | 138Kpa |
Traction | 714KN |
Maximum Flow | 550*2 L/min |
Working Pressure | 34.3/37Mpa |
Hydraulic Fluid Tank Volume | 1090L |
A-Overall Length | 11220mm |
B-Overall Width | 4451mm |
C-Overall Height (Top of Boom) | 6170mm |
D-Overall Height (Top of Cab) | 3920mm |
E-Gap from Counterweight to Ground | 1728mm |
F-Min Ground Clearance | 940mm |
G-Tail Swing Radius | 4711mm |
H-Length of Track on Ground | 5200mm |
J-Track Length | 6445mm |
K-Gauge | 3510/2940mm |
L-Width of Track | 4160/3590mm |
M-Width of Track Shoe | 650mm |
N-Width of Turning Table | 3482mm |
O-Max. Digging Height | 12700mm |
P-Max. Dumping Height | 9080mm |
Q-Max. Digging Depth | 3920mm |
T-Max. Digging Distance | 11380mm |
U-Max. Digging Distance at Plane | 10980mm |
V-Min. Swing Radius | 6205mm |
W-Max Height at Min Swing Radius | 8730mm |
X-Distance from Center of Swing to Rear End | 4711mm |
Y-Thickness of Track Grousers | 50mm |
Z-Height of Counterweight | 3750mm |
Ground Contact Length (In Transportation) | 9687mm |
Length of Stick | 3500mm |
Length of Boom | 5550mm |
