| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Set/Sets |
Basic Info
Model No.: EX220
Brand: Wenpeng
Applicable Industry: Building Material Shops, Machinery Repair Shops, Farms, Energy &Amp; Mining, Construction Works, Other
Out-of-warranty Service: Video Technical Support, Online Support
Place Of Origin: China
Status: New
Exercise: Crawler Excavator
Warranty Period: 1 Year
Engine Brand: Cummins
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Operating Weight: 22.4T
Bucket Capacity: 0.9-1.2m³
Rated Power: 133kw/2000rpm
Additional Info
Packaging: Export Packaging
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 1000sets/month
Certificate: CE/ Euro 5
Port: Qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product Description

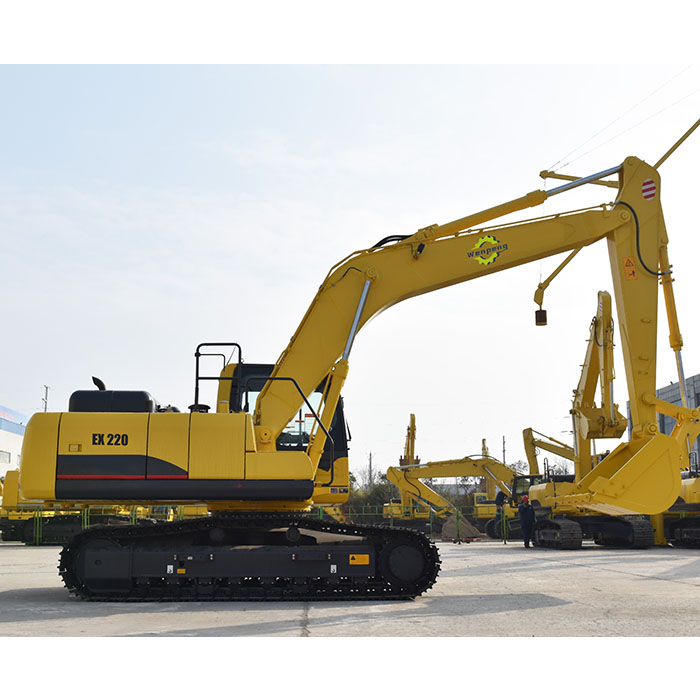

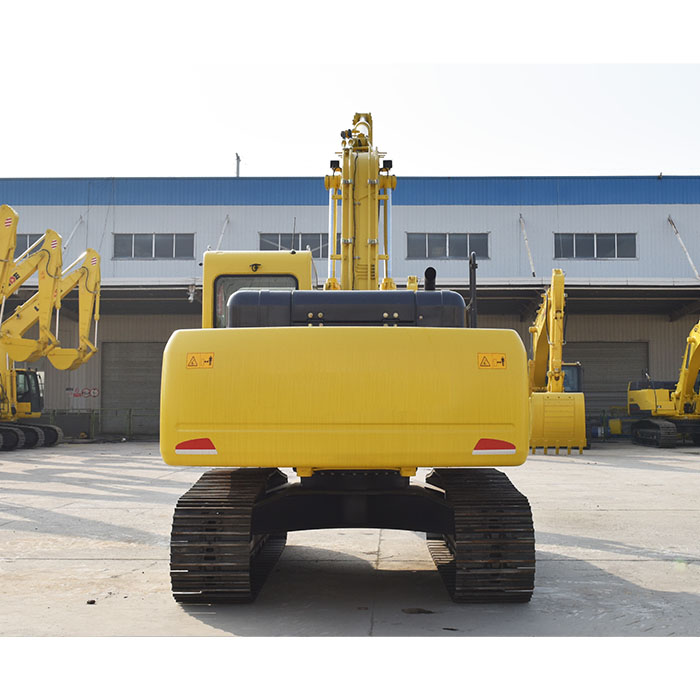

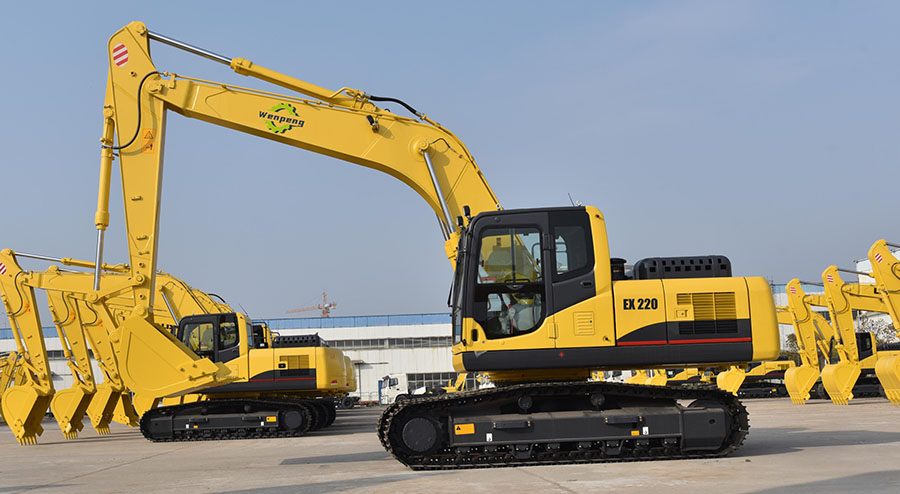

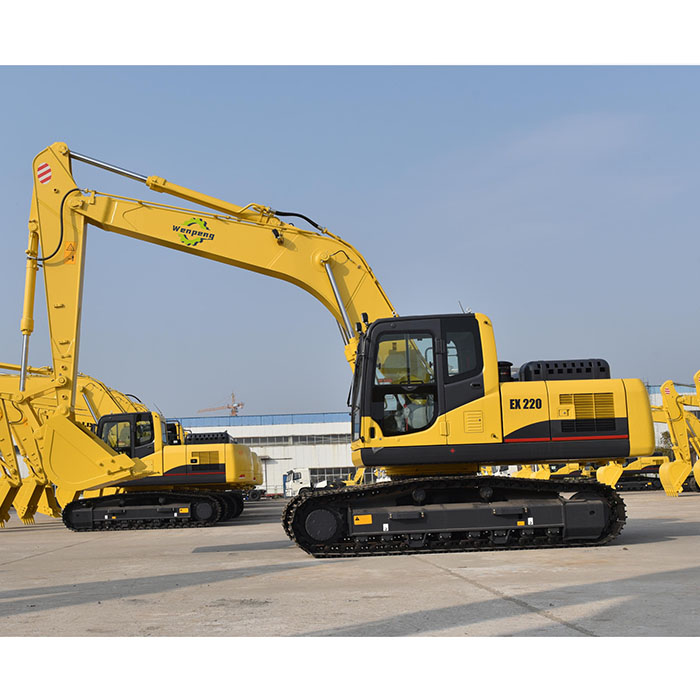

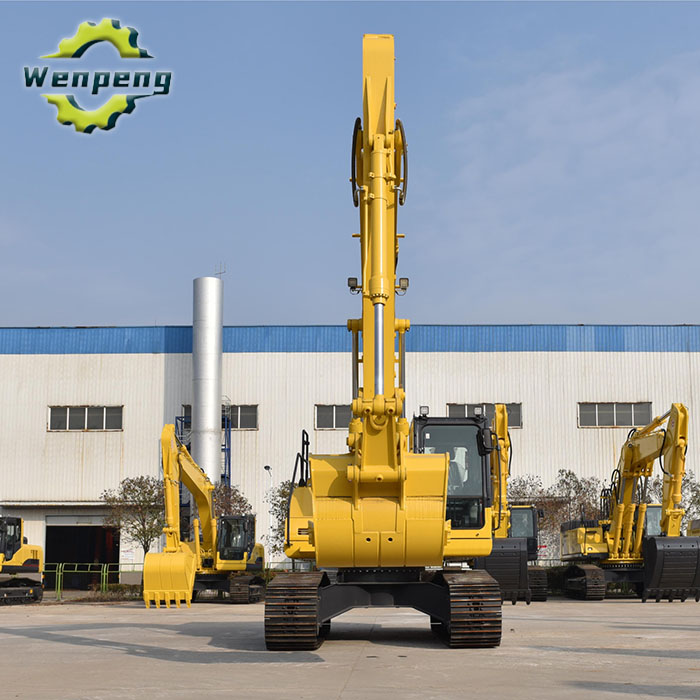

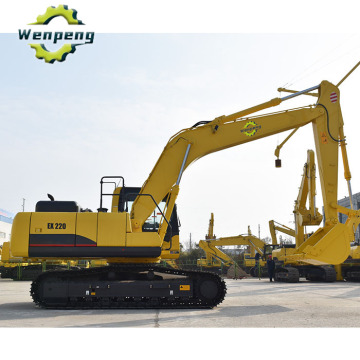

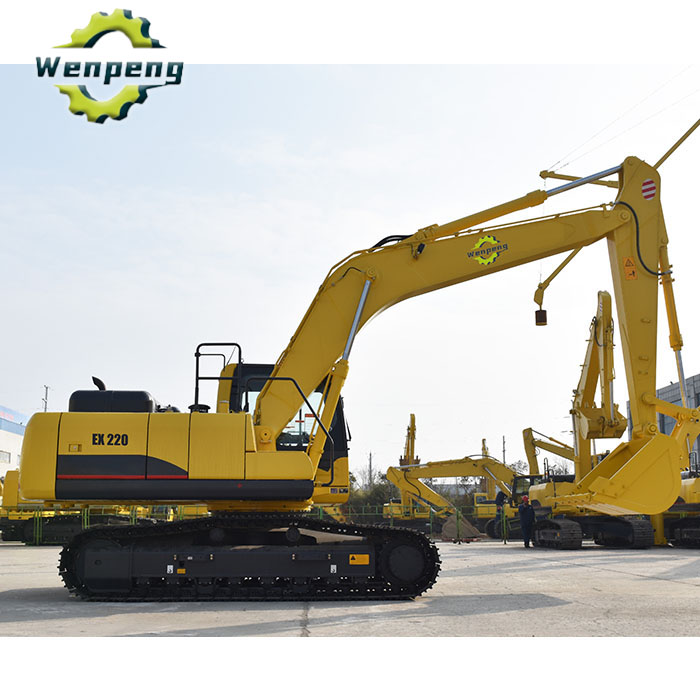

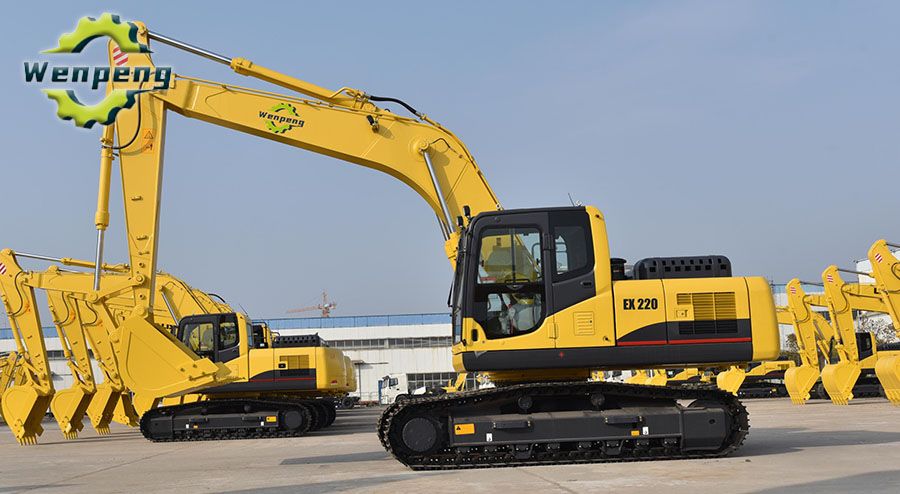

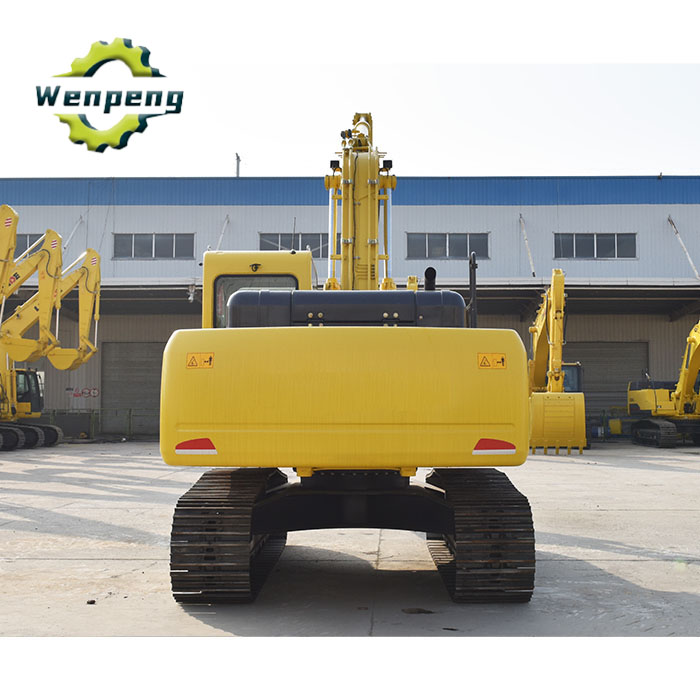

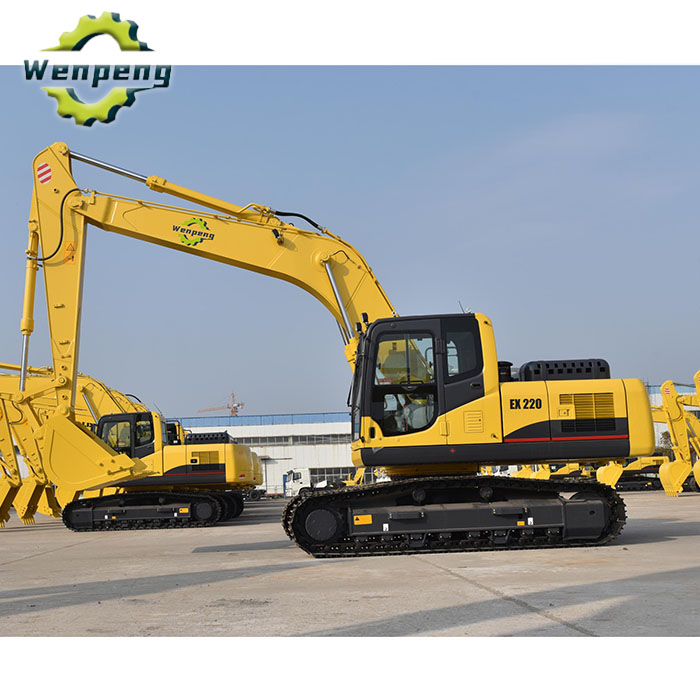

Providing excellent digging capacity and efficient working performance, the 22T hydraulic crawler excavator is an ideal choice for various complex large-scale construction and civil engineering projects.
| Model | EX220 |
|---|---|
| Engine Model | Cummins 6B5.9 |
| Working Mass | 22T |
| Bucket Capacity (SAE) | 0.9-1.2m³ |
| Power | 133/2000kw/r/min |
| Fuel Tank Volume | 350L |
| Travel Speed (High/Low) | 5.8/3.2 km/h |
| Swing Speed | 10.7 r/min |
| Gradeability | 35° |
| Digging Force of Bucket | 159KN |
| Digging Force of Stick | 107.3KN |
| Specific Pressure of Ground Contact | 45.3Kpa |
| Traction | 220KN |
| Maximum Flow | 220*2 L/min |
| Working Pressure | 34.3Mpa |
| Hydraulic Fluid Tank Volume | 246L |
| A-Overall Length | 9390mm |
| B-Overall Width | 2780mm |
| C-Overall Height (Top of Boom) | 3040mm |
| D-Overall Height (Top of Cab) | 3120mm |
| E-Gap from Counterweight to Ground | 1065mm |
| F-Min Ground Clearance | 468mm |
| G-Tail Swing Radius | 2720mm |
| H-Length of Track on Ground | 3445mm |
| J-Track Length | 4260mm |
| K-Gauge | 2180mm |
| L-Width of Track | 2780mm |
| M-Width of Track Shoe | 600mm |
| N-Width of Turning Table | 2700mm |
| O-Max. Digging Height | 9237mm |
| P-Max. Dumping Height | 6526mm |
| Q-Max. Digging Depth | 6603mm |
| T-Max. Digging Distance | 9898mm |
| U-Max. Digging Distance at Plane | 9714mm |
| Min. Swing Radius | 3800mm |
| Max Height at Min Swing Radius | 7605mm |
| Distance from Center of Swing to Rear End | 2720mm |
| Y-Thickness of Track Grousers | 26mm |
| Height of Counterweight | 2120mm |
| Ground Contact Length (In Transportation) | 5060mm |
| Length of Stick | 2900mm |
| Length of Boom | 5700mm |
