| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Set/Sets |
Basic Info

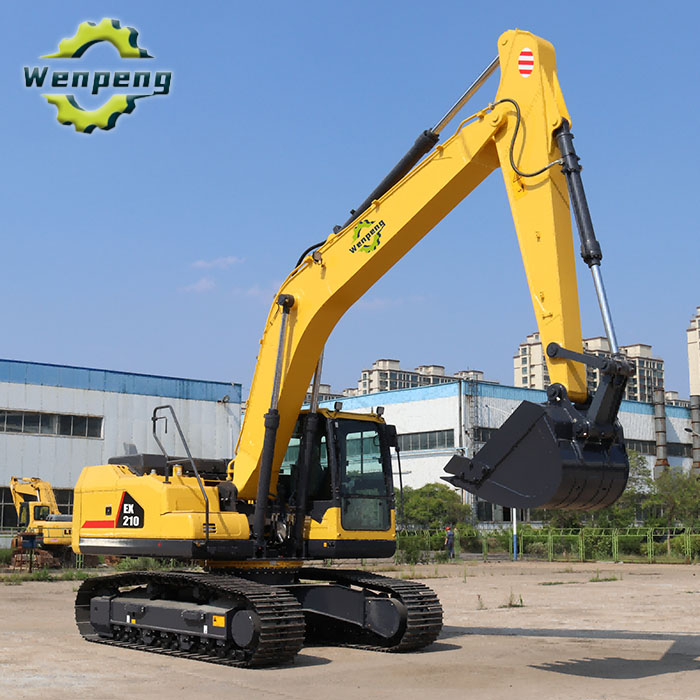

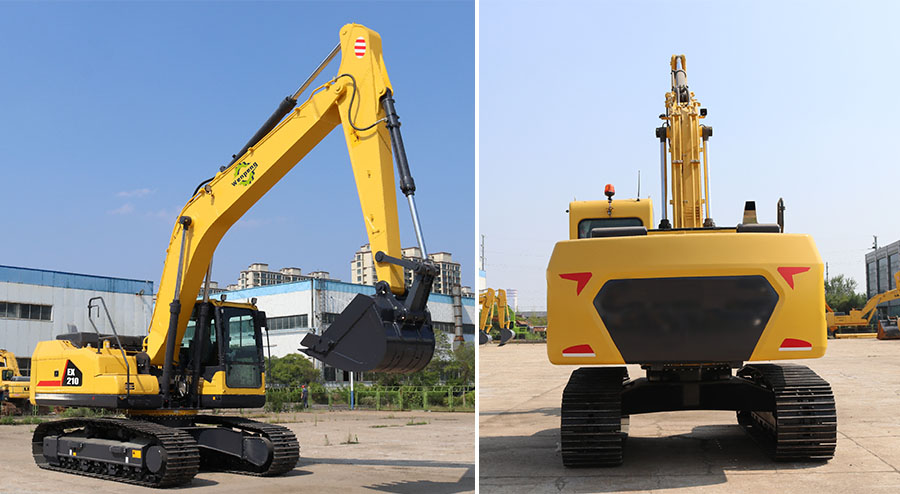

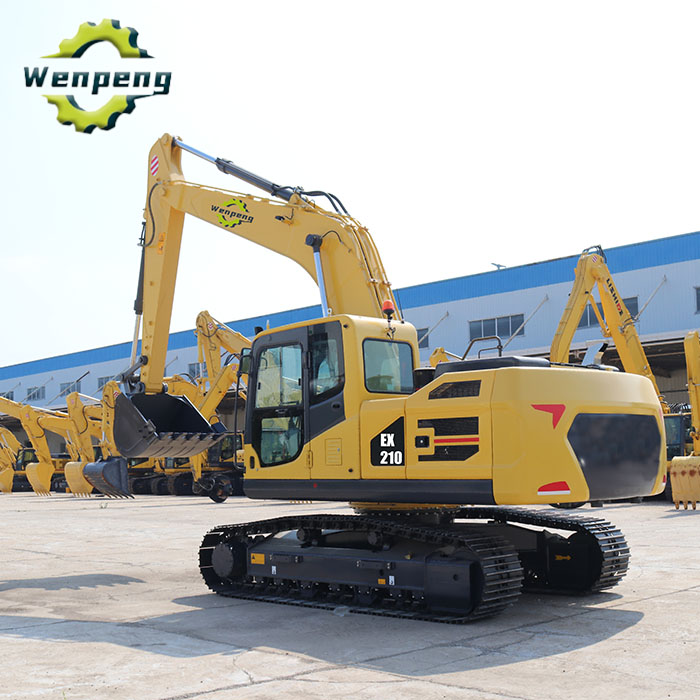

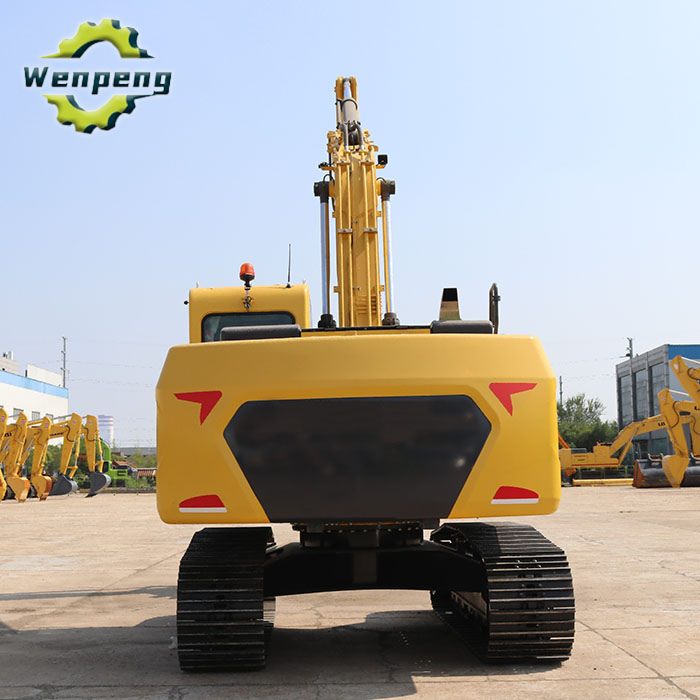

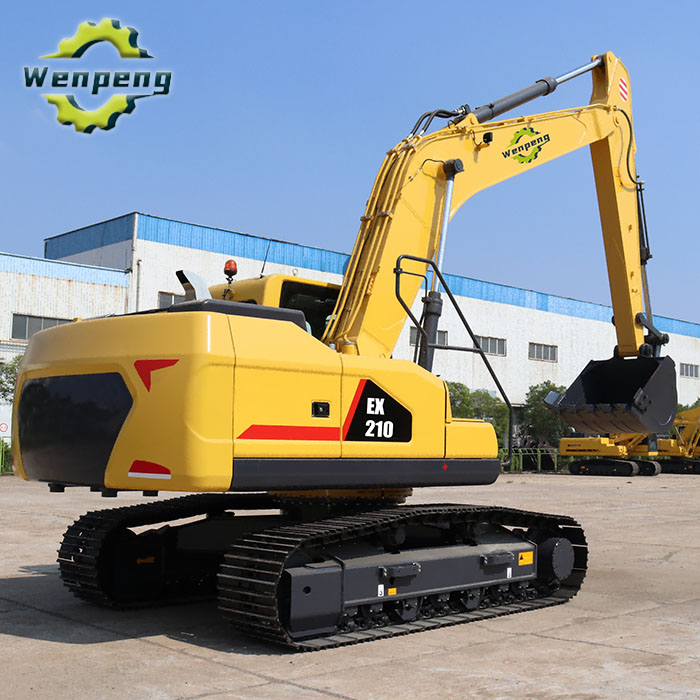

Model No.: EX210
Brand: Wenpeng
Applicable Industry: Building Material Shops, Manufacturing Plant, Farms, Construction Works, Energy &Amp; Mining, Other
Out-of-warranty Service: Video Technical Support, Online Support
Place Of Origin: China
Status: New
Exercise: Crawler Excavator
Warranty Period: 1 Year
Engine Brand: Cummins
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Operating Weight: 21T
Bucket Capacity: 0.9-1.2m³
Additional Info
Packaging: Export wooden box packaging
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 1000sets/month
Certificate: CE,Euro 5
Port: Qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product Description
| Model | EX210 |
| Engine model | Cummins 6BTAA5.9 |
| Working mass | 21T |
| Bucket capacity(SAE) | 0.9-1.2m³ |
| Power | 133/2200kw/r/min |
| Volume of fuel tank | 350L |
| Travel speed (High/Low) | 5.2/3.5 km/h |
| Swing speed | 11.7 r/min |
| Gradeability | 35° |
| Digging force of bucket | 138KN |
| Digging force of stick | 99KN |
| Specific pressure of ground contact | 44.9Kpa |
| Traction | 174KN |
| Maximum flow | 223*2L/min |
| Working pressure | 34.3/37.3Mpa |
| Volume of hydraulic fluid tank | 246L |
| A-Overall length | 9390mm |
| B-Overall Width | 2780mm |
| C-Overall height(tope of boom) | 3040mm |
| D-Overall height(tope of cab) | 3114mm |
| E-Gap from counterweight to ground | 1065mm |
| F-Min ground clearance | 468mm |
| G-Tail swing radius | 2720mm |
| H-Length of track on ground | 3445mm |
| J-Track length | 4250mm |
| K-Gauge | 2180mm |
| L-Width of track | 2780mm |
| M-Width of track shoe | 600mm |
| N-Width of turning table | 2700mm |
| O-Max. digging height | 8630mm |
| P-Max. dumping height | 6180mm |
| Q-Max. digging depth | 5501mm |
| T-Max. digging distance | 8305mm |
| U-Max. digging distance at plane | 8180mm |
| Min. swing radius | 2495mm |
| Max height at min swing radius | 6430mm |
| Distance from center of swing to rear end | 2720mm |
| Y-Thickness of track grouses | 26mm |
| Height of counterweight | 2045mm |
| Ground Contact length (in transportation) | 4940mm |
| Length of stick | 2900mm |
| Length of boom | 5700mm |
