| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Set/Sets |
Basic Info
Model No.: EX260
Brand: Wenpeng
Applicable Industry: Building Material Shops, Manufacturing Plant, Farms, Construction Works, Energy &Amp; Mining
Place Of Origin: China
Status: New
Exercise: Crawler Excavator
Engine Brand: Cummins
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Operating Mass: 25.5T
Bucket Capacity: 1.3-1.4m³
Additional Info
Packaging: Export packaging
Productivity: 100sets/month
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 100sets/month
Certificate: CE
Port: Qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product Description

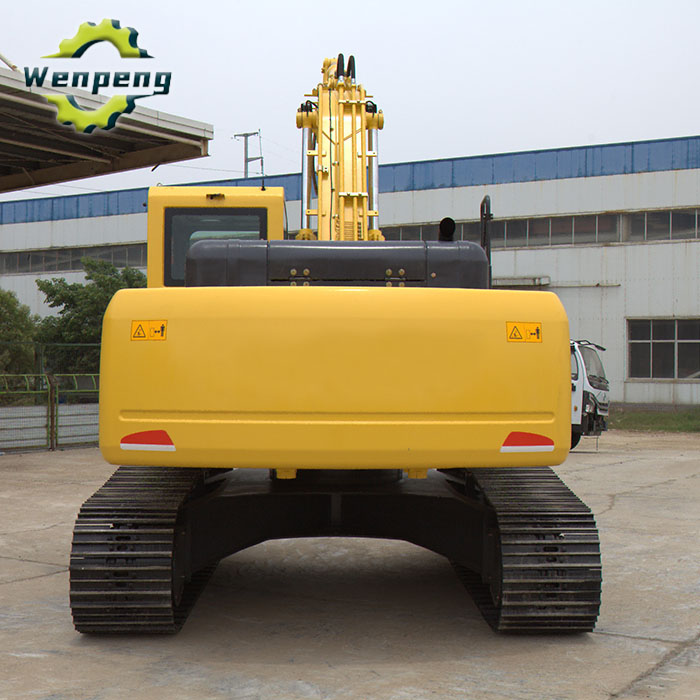

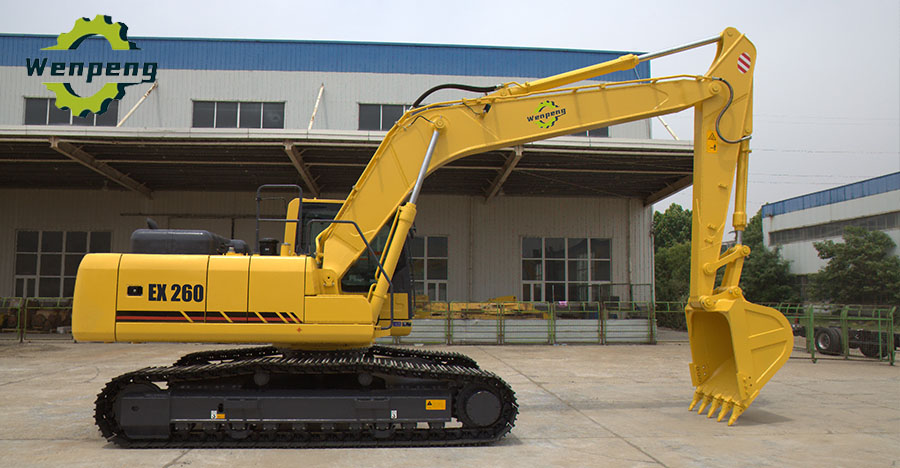

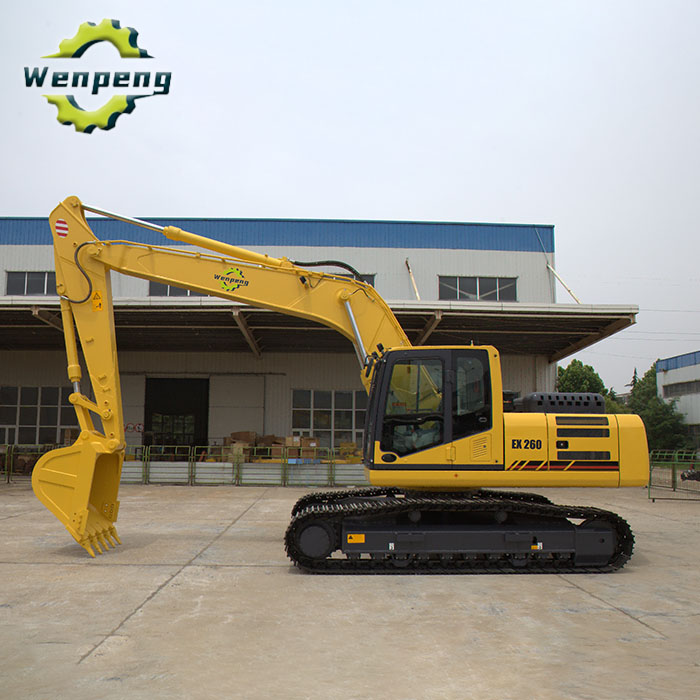

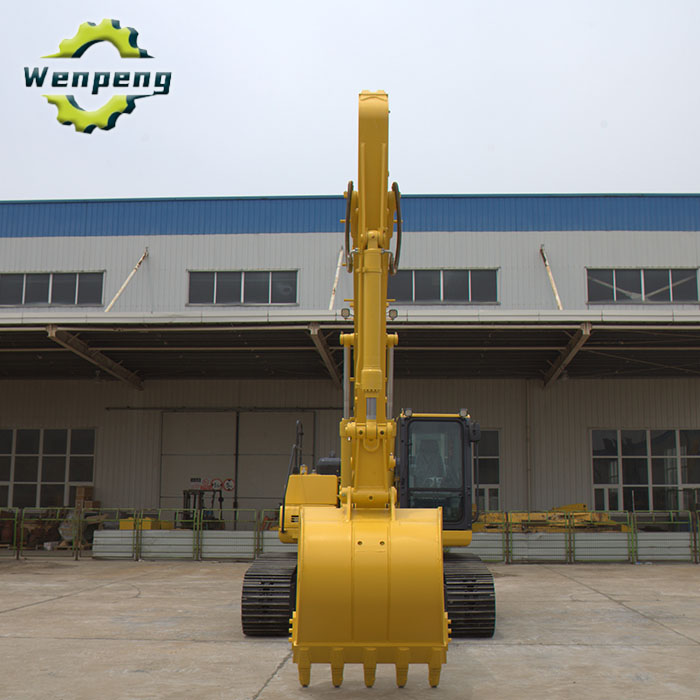

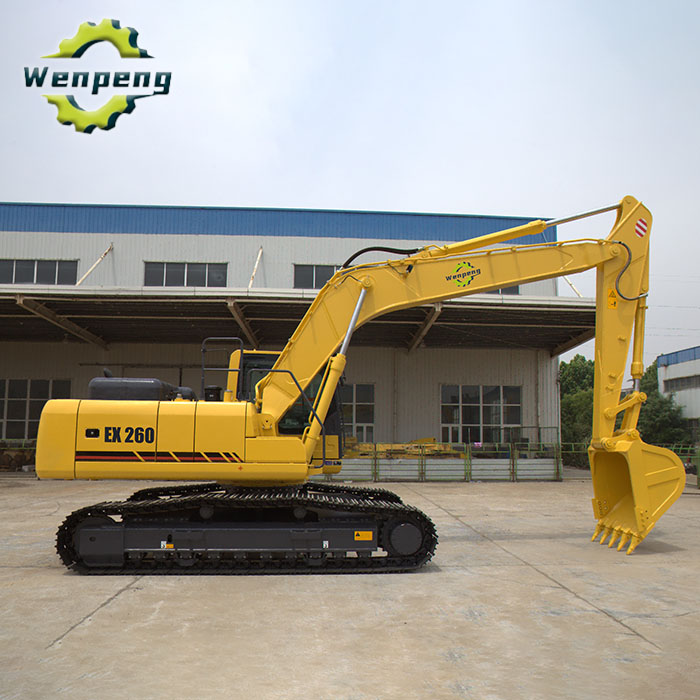

Wenpeng Machinery supplies the medium hydraulic crawler excavator EX260, featuring a load capacity of 25.5T and a bucket capacity of 1.3m³, offering outstanding excavation capabilities and efficient operational performance, making it an ideal choice for various complex large-scale construction projects, tunnels, and road engineering.
| Model | EX260 |
|---|---|
| Engine Model | Cummins QSB7 |
| Working Mass | 25.5T |
| Bucket Capacity (SAE) | 1.3-1.4m³ |
| Power | 150/2050kW/r/min |
| Fuel Tank Volume | 400L |
| Travel Speed (High/Low) | 5.2/3.5 km/h |
| Swing Speed | 11.1 r/min |
| Gradeability | 35° |
| Digging Force (Bucket) | 159kN |
| Digging Force (Stick) | 115kN |
| Specific Pressure of Ground Contact | 48.6KPa |
| Traction | 174kN |
| Maximum Flow | 280*2 L/min |
| Working Pressure | 34.3MPa |
| Hydraulic Fluid Tank Volume | 230L |
| A-Overall Length | 10270mm |
| B-Overall Width | 3190mm |
| C-Overall Height (Top of Boom) | 3340mm |
| D-Overall Height (Top of Cab) | 3070mm |
| E-Gap from Counterweight to Ground | 1065mm |
| F-Min Ground Clearance | 442mm |
| G-Tail Swing Radius | 2810mm |
| H-Length of Track on Ground | 3830mm |
| J-Track Length | 4636mm |
| K-Gauge | 2590mm |
| L-Width of Track | 3190mm |
| M-Width of Track Shoe | 600mm |
| N-Width of Turning Table | 2700mm |
| O-Max. Digging Height | 9800mm |
| P-Max. Dumping Height | 6817mm |
| Q-Max. Digging Depth | 7075mm |
| T-Max. Digging Distance | 10384mm |
| U-Max. Digging Distance at Plane | 10208mm |
| Min. Swing Radius | 3923mm |
| Max Height at Min Swing Radius | 8020mm |
| Distance from Center of Swing to Rear End | 2810mm |
| Y-Thickness of Track Grousers | 26mm |
| Height of Counterweight | 2120mm |
| Ground Contact Length (In Transportation) | 6390mm |
| Length of Stick | 3050mm |
| Length of Boom | 3020mm |
Product Categories : Constrction Machine And Truck > Excavator
