| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Set/Sets |
Basic Info

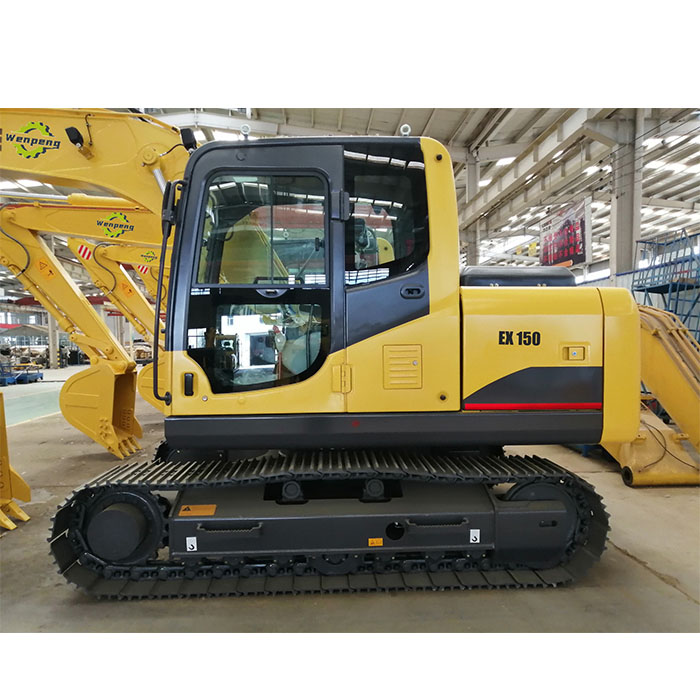

Model No.: EX150
Brand: Wenpeng
Applicable Industry: Building Material Shops, Farms, Construction Works, Energy &Amp; Mining
Out-of-warranty Service: Video Technical Support, Online Support
Place Of Origin: China
Status: New
Exercise: Crawler Excavator
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Operating Mass: 15T
Bucket Capacity: 0.53-0.62m³
Additional Info
Packaging: Export wooden box packaging
Productivity: 1000sets/month
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 1000sets/month
Certificate: CE
Port: Qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product Description

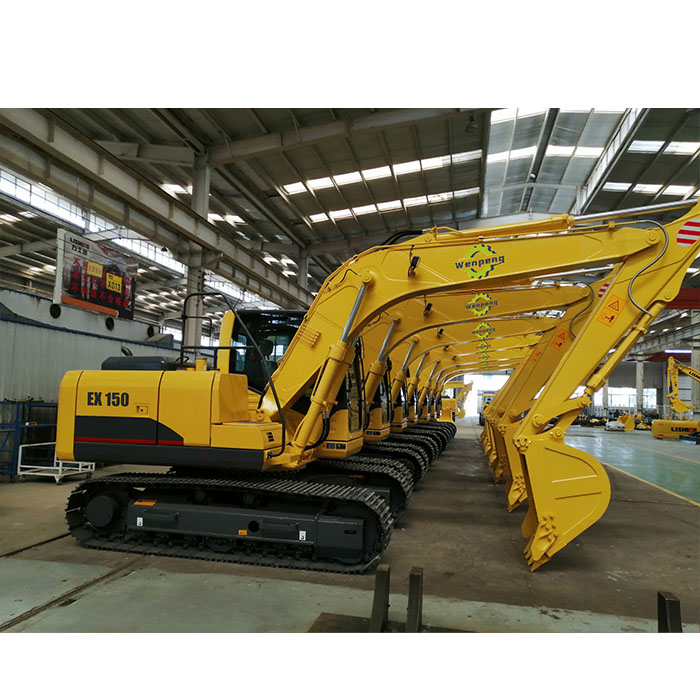

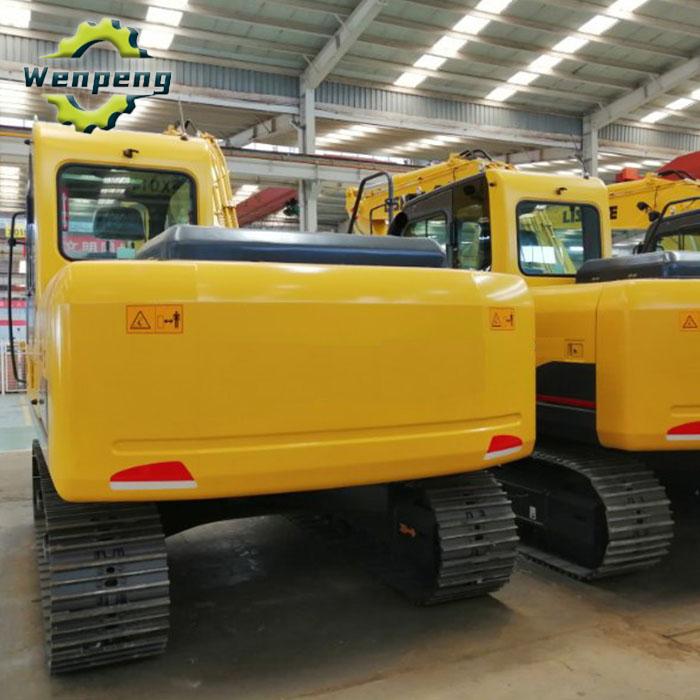

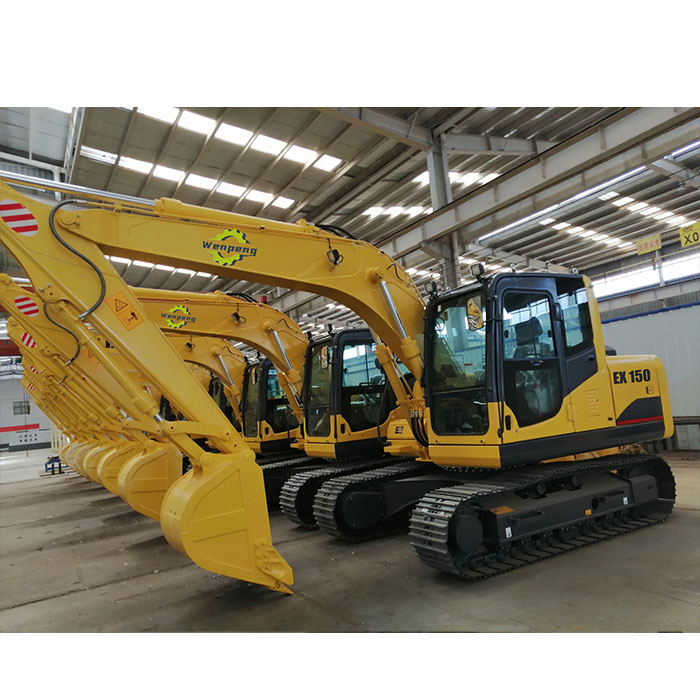

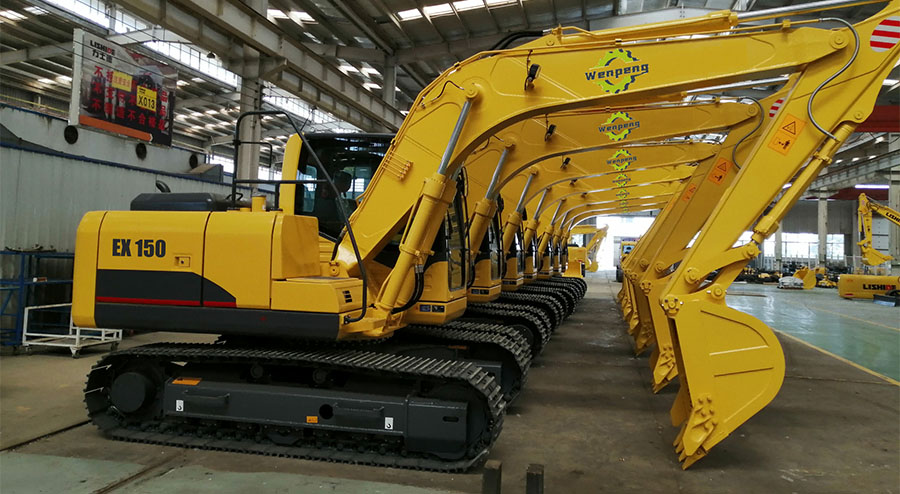

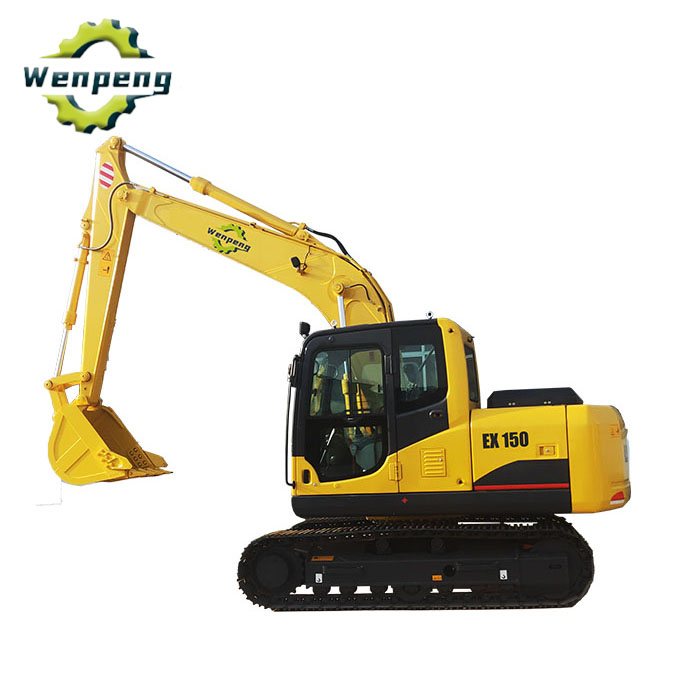

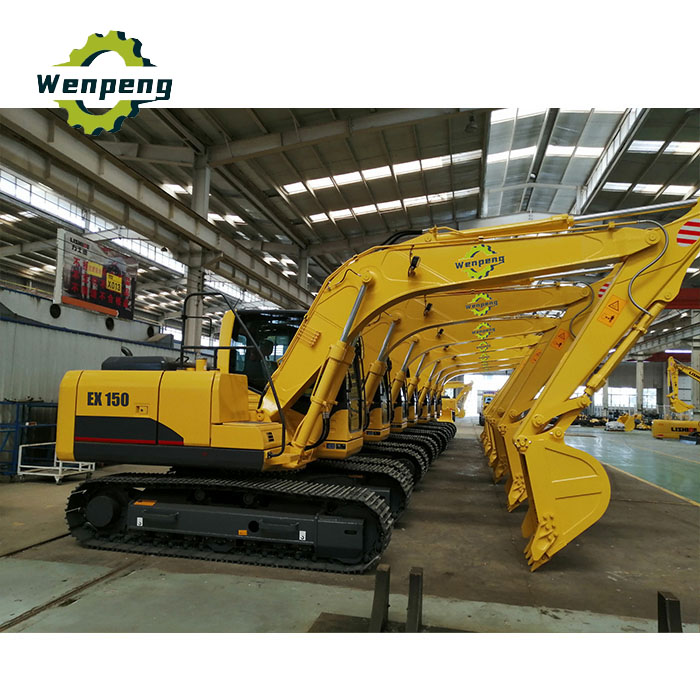

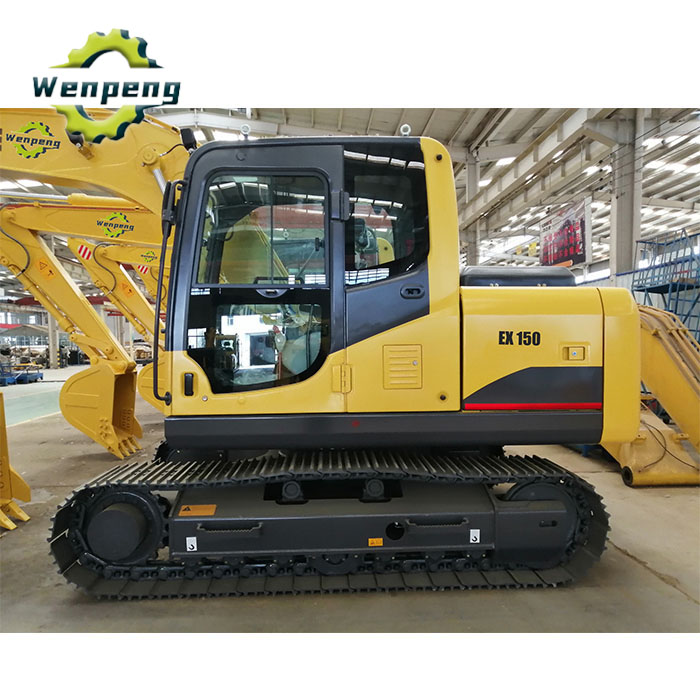

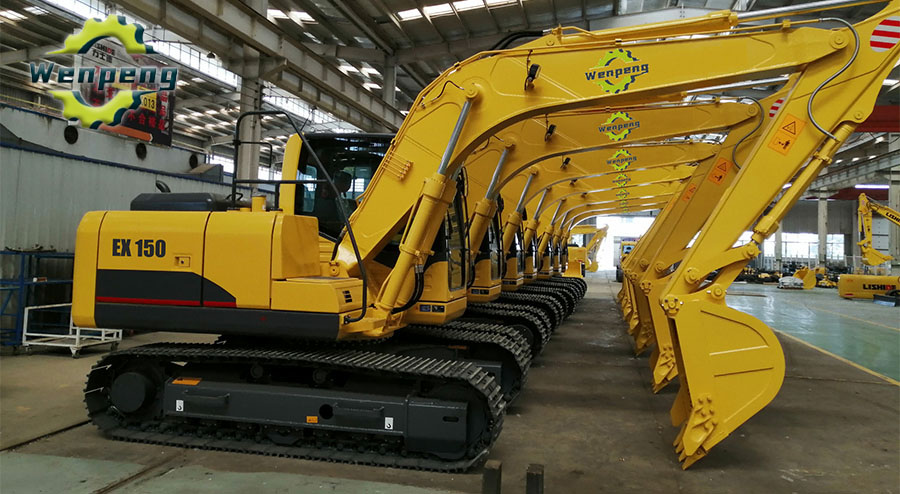

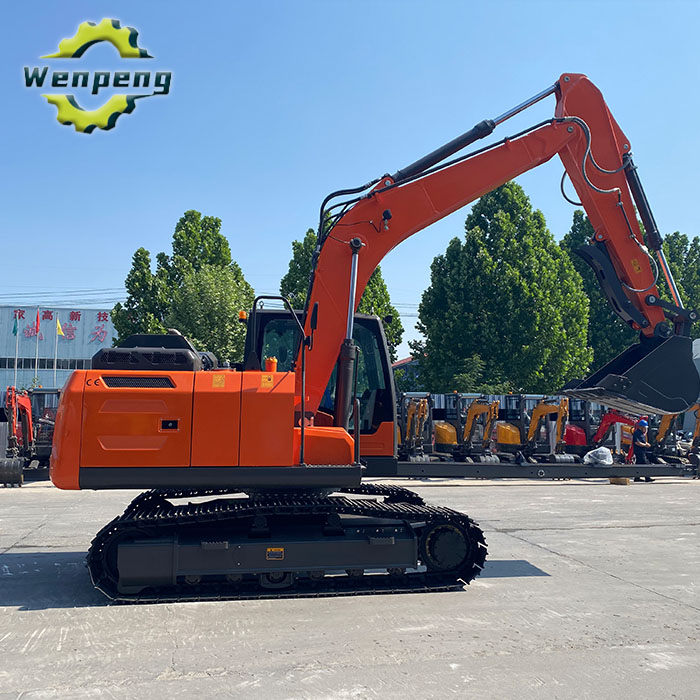

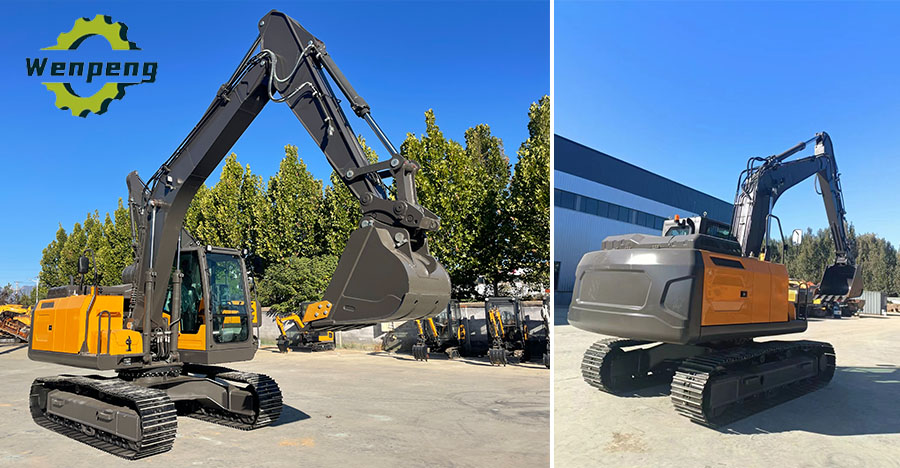

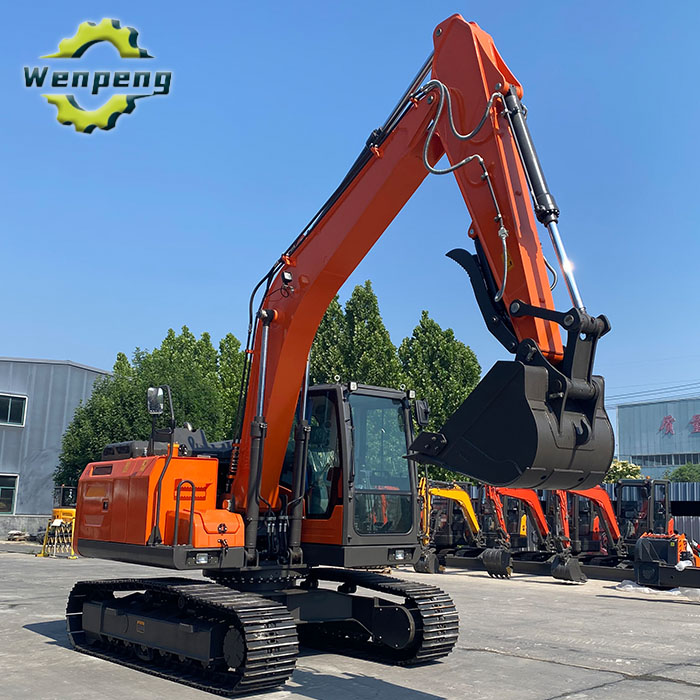

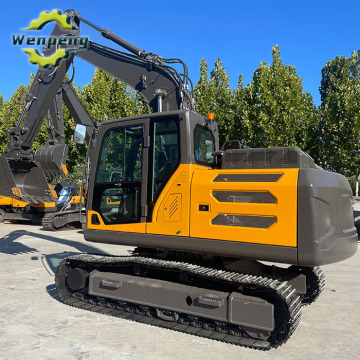

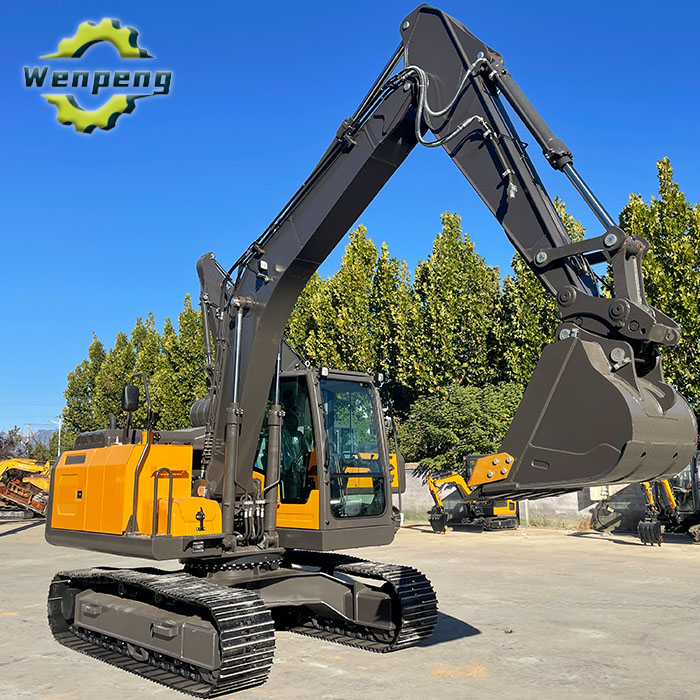

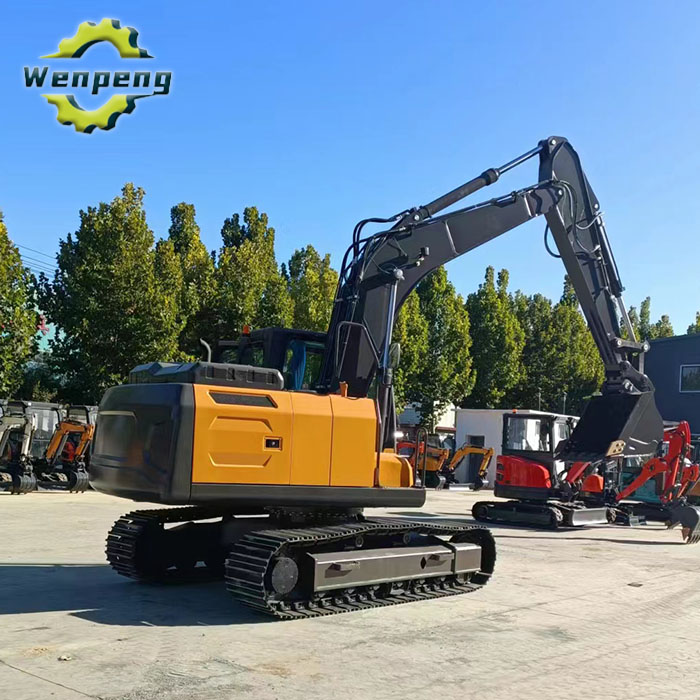

Wenpeng Machinery Factory supplies a 15-ton crawler hydraulic excavator with powerful digging ability and efficient operating performance, suitable for earthwork excavation, loading, leveling, slope trimming, lifting, crushing, demolition, and ditch excavation.
| Model | EX150 |
|---|---|
| Engine model | QSF3.8T3TC115 |
| Working mass | 15T |
| Bucket capacity (SAE) | 0.53-0.62m³ |
| Power | 86/2200kw/r/min |
| Volume of fuel tank | 247L |
| Travel speed (High/Low) | 5.3/3.1 km/h |
| Swing speed | 12.6 r/min |
| Gradeability | 35° |
| Digging force of bucket | 80KN |
| Digging force of stick | 64KN |
| Specific pressure of ground contact | 38Kpa |
| Traction | 86 |
| Maximum flow | 128*2L/min |
| Working pressure | 34.3Mpa |
| Volume of hydraulic fluid tank | 130L |
| A-Overall length | 7576mm |
| B-Overall width | 2490mm |
| C-Overall height (top of boom) | 2780mm |
| D-Overall height (top of cab) | 2813mm |
| E-Gap from counterweight to ground | 870mm |
| F-Min ground clearance | 433mm |
| G-Tail swing radius | 2015mm |
| H-Length of track on ground | 2750mm |
| J-Track length | 3486mm |
| K-Gauge | 1960mm |
| L-Width of track | 2460mm |
| M-Width of track shoe | 500mm |
| N-Width of turning table | 2490mm |
| O-Max. digging height | 8630mm |
| P-Max. dumping height | 6180mm |
| Q-Max. digging depth | 5501mm |
| T-Max. digging distance | 8309mm |
| U-Max. digging distance at plane | 8180mm |
| Min. swing radius | 2495mm |
| Max height at min swing radius | 6433mm |
| Distance from center of swing to rear end | 2015mm |
| Y-Thickness of track grouser | 25mm |
| Height of counterweight | 1935mm |
| Ground Contact length (in transportation) | 4402mm |
| Length of stick | 2500mm |
| Length of boom | 4600mm |
