| Unit Price: | USD 38500 / Set/Sets |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Set/Sets |
Basic Info
Model No.: WP-H26
Brand: Wenpeng
Applicable Industry: Building Material Shops, Construction Works, Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): India, Chile
Showroom Location (in Which Countries Are There Sample Rooms Overseas): India, Chile
Additional Info
Packaging: exported packing
Productivity: 1000sets/ month
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 1000 sets/ month
Certificate: CE/ISO
HS Code: 8429119000
Port: qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product Description
WENPENG Construction Machine And Trucks:
The company's main products include Excavator, loader, Skid Steer Loader, Bulldozer, Armored Bulldozer, Bulldozer Attachments and ect. The product range is complete, covering users of all ages and different needs. The company has a professional R&D team and continuously launches new products to meet market demand.
•A CUMMINS NTA855-C360S10 engine which can gives you more power and reliability you need.
•The highly reliable power shift transmission, stable torque converter and the two-stage straight-tooth structure final drive transmit power efficiently.
•With independent engine cooling water tank, chassis oil cooler, water and air intercooler provides excellent cooling performance and simple maintenance operation to ensure continuous operation of the machine.
•The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.
•The final drive is driven low and provides more powerful driving force and efficient gradeability. The crawler-type walking chassis has reached the international advanced level and is suitable for various complicated working conditions, with high reliability and carrying capacity.

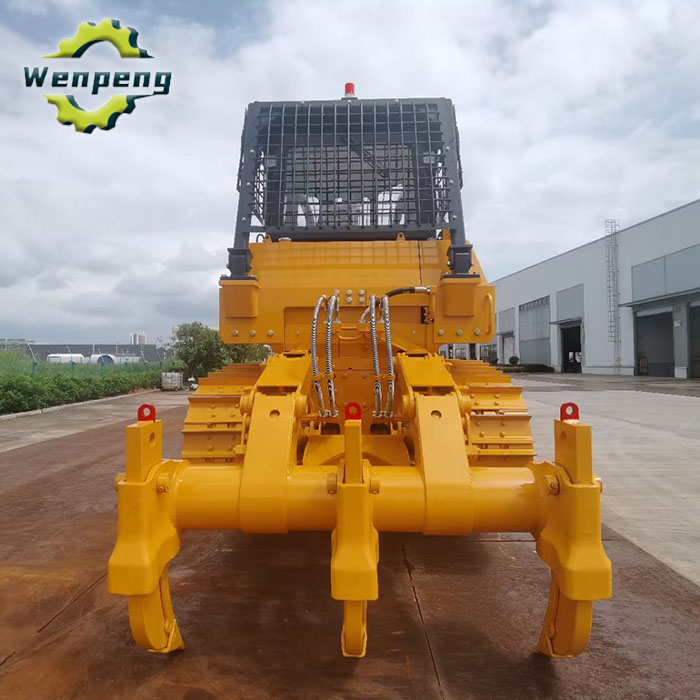

•The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force
| 主要技术参数 Main Specifications | |
| 型号 Model | HD26 |
| 名称 Type | 260HP Standard Hydraulic Crawler Type |
| 发动机型号 | CUMMINS NT855-C280S10 |
| 发动机排量（L）Displacement | 14.01 |
| 额定功率（kw/rpm）Rated power | 175/1800 |
| 最大扭矩（N.m/rpm）Max.torque | 1030/1250 |
| 使用重量 Operating weight | 26 Ton |
| 长×宽×高(mm) Dimension(no ripper) | 5390×3735×3350 |
| 接地长度 (mm) Grounding length | 2730 |
| 接地比压(MPa) Ground pressure | 0.077 |
| 履带中心距（mm） Track gauge | 2000 |
| 铲刀容量(m³) Dozing capacity | 6.4 |
| 铲刀宽度（mm） Blade width | 3725 |
| 铲刀高度（mm） Blade height | 1317 |
| 最大切削深度（mm） Max drop below ground | 540 |
| 履带板宽度（mm） Track shoe width | 560 |
| 链轨节距（mm） Pitch | 216 |
| 链轨节数量 Quantity of track link | 38 |
| 托轮数量 Quantity of Carrier rollers | 4 |
| 支重轮数量（每侧） Quantity of Track rollers（each side） | 6 |
| 液压系统最高工作压力（MPa） Max pressure | 14 |
| 液压系统流量L/min Discharge | 262 |
| 最大牵引力（KN） Max tractor force | 202 |
| 前进各档速度 (Km/h) Forward Speed | F1:0-3.6 |
| F2:0-6.5 | |
| F3:0-11.2 | |
| 后退各档速度 (Km/h) Rear Speed | R1:0-4.3 |
| R2:0-7.7 | |
| R3:0-13.2 |
Product Categories : Constrction Machine And Truck > Bulldozer
