SUZHOU WENPENG MACHINE TECHNICAL CO.,LTD.
Home > Products > Constrction Machine And Truck > Bulldozer > Sanitation Bulldozer Equipped with a 25cbm Large Blade

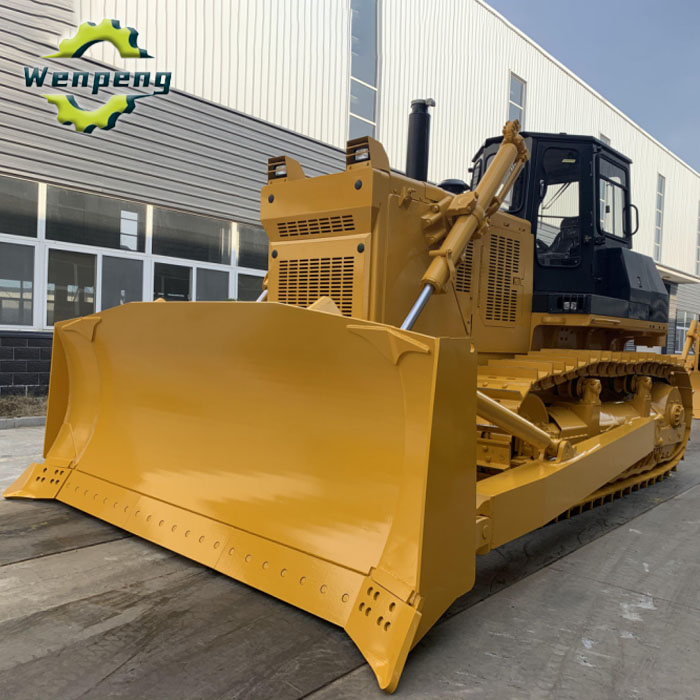

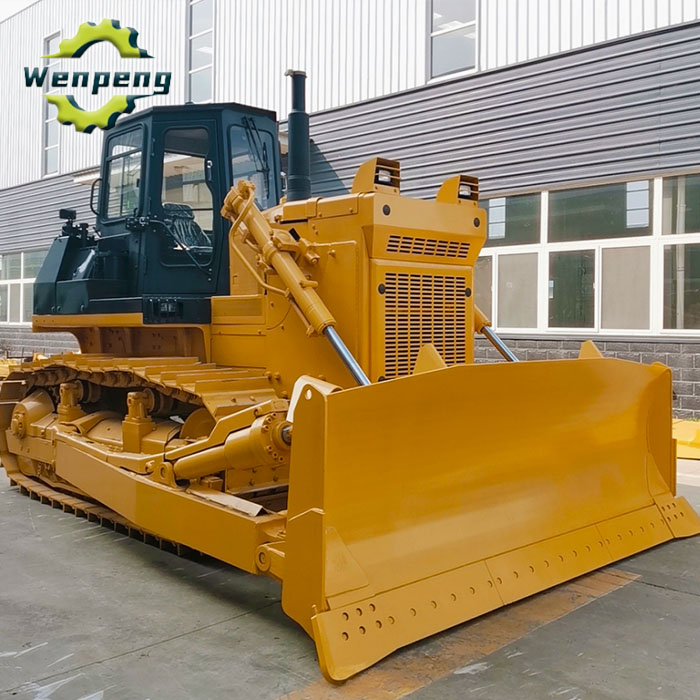

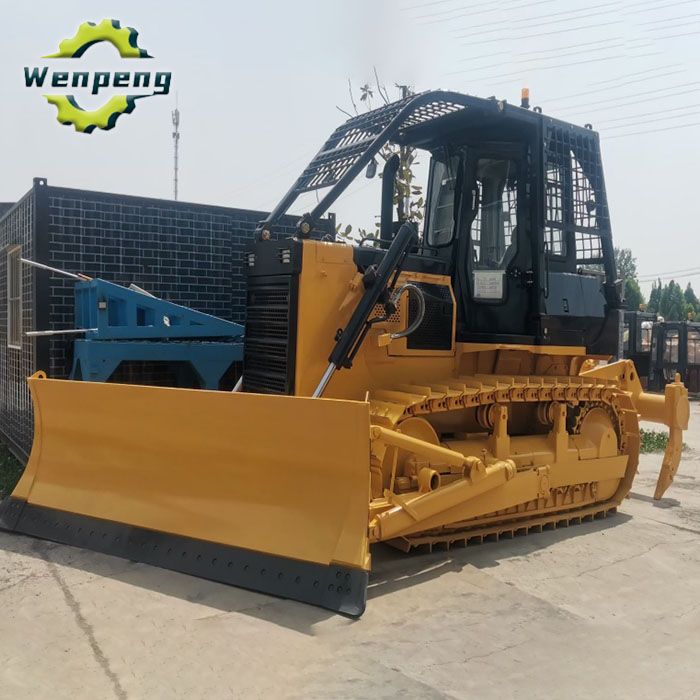

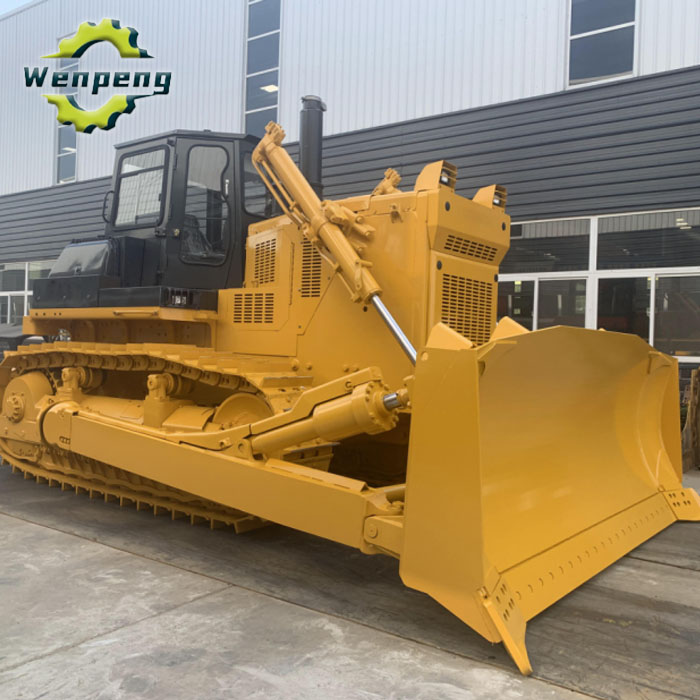

Sanitation Bulldozer Equipped with a 25cbm Large Blade
Sanitation Bulldozer Equipped with a 25cbm Large Blade
Sanitation Bulldozer Equipped with a 25cbm Large Blade
Sanitation Bulldozer Equipped with a 25cbm Large Blade
  • Sanitation Bulldozer Equipped with a 25cbm Large Blade
  • Sanitation Bulldozer Equipped with a 25cbm Large Blade
  • Sanitation Bulldozer Equipped with a 25cbm Large Blade
  • Sanitation Bulldozer Equipped with a 25cbm Large Blade

Sanitation Bulldozer Equipped with a 25cbm Large Blade

    Unit Price: USD 36000 / Set/Sets
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
Contact Now

Basic Info

Model No.WP-H022

BrandWenpeng

Applicable IndustryConstruction Works, Building Material Shops, Energy &Amp; Mining

Out-of-warranty ServiceVideo Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)Chile, India

Showroom Location (in Which Countries Are There Sample Rooms Overseas)India, Chile

Video Factory InspectionProvided

Mechanical Test ReportProvided

StatusNew

ExerciseCrawler Bulldozer

Additional Info

Packagingexported packing

Productivity500 sets/ month

TransportationOcean,Land

Place of OriginChina

Supply Ability500 pcs/ month

CertificateCE/ISO

HS Code8429119000

Portqingdao

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF,EXW

Product Description

Sanitation Bulldozer with 25cbm Big Blade

WENPENG CONSTRUCTION MACHINES AND TRUCKS:

The company's main products include Excavator, loader, Skid Steer Loader, bulldozer, Armored Bulldozer, Bulldozer Attachments, and others. The product range is complete, covering users of all ages and different needs. The company has a professional R&D team and continuously launches new products to meet market demand.

Features of Bulldozer:

  • A CUMMINS NTA855-C360S10 engine which can give you more power and reliability you need.
  • The highly reliable power shift transmission, stable torque converter, and the two-stage straight-tooth structure final drive transmit power efficiently.
  • With an independent engine cooling water tank, chassis oil cooler, water and air intercooler, it provides excellent cooling performance and simple maintenance operation to ensure continuous operation of the machine.
  • The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High-quality weld seam ensures the main frame has a full life cycle.
  • The final drive is driven low and provides more powerful driving force and efficient gradeability. The crawler-type walking chassis has reached the international advanced level and is suitable for various complicated working conditions, with high reliability and carrying capacity.
  • The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force.

主要技术参数 Main Specifications

型号 Model HD22
名称 Type 220HP Standard Hydraulic Crawler Type
发动机型号 Engine Model CUMMINS NT855-C280S10
发动机排量(L)Displacement 14.01
额定功率(kw/rpm)Rated Power 175/1800
最大扭矩(N.m/rpm)Max Torque 1030/1250
使用重量 Operating Weight 23.5 Ton
长×宽×高(mm) Dimension (no ripper) 5460×3725×3395
接地长度 (mm) Grounding Length 2730
接地比压(MPa) Ground Pressure 0.077
履带中心距(mm) Track Gauge 2000
铲刀容量(m³) Dozing Capacity 6.4
铲刀宽度(mm) Blade Width 3725
铲刀高度(mm) Blade Height 1317
最大切削深度(mm) Max Drop Below Ground 540
履带板宽度(mm) Track Shoe Width 560
链轨节距(mm) Pitch 216
链轨节数量 Quantity of Track Link 38
托轮数量 Quantity of Carrier Rollers 4
支重轮数量(每侧) Quantity of Track Rollers (each side) 6
液压系统最高工作压力(MPa) Max Pressure 14
液压系统流量L/min Discharge 262
最大牵引力(KN) Max tractor Force 202
前进各档速度 (Km/h) Forward Speed F1: 0-3.6
F2: 0-6.5
F3: 0-11.2
后退各档速度 (Km/h) Rear Speed R1: 0-4.3
R2: 0-7.7
R3: 0-13.2

WHY CHOOSE US:

  1. Strong technical strength: Wenpeng Machinery Company has a technically strong R&D team, equipped with advanced technical equipment and processes, and can provide high-quality and efficient mechanical products and solutions.
  2. Reliable product quality: Wenpeng Machinery Company pays attention to product quality control and adopts a strict quality management system to ensure that its products meet international standards and customer requirements, have stable performance, and reliable service life.
  3. Perfect after-sales service: Wenpeng Machinery Company provides comprehensive after-sales service, including installation and commissioning, training and operation, equipment maintenance, etc., which can respond to customer needs in a timely manner, solve customer problems, and ensure customer satisfaction.
  4. Reasonable price: Wenpeng Machinery Company can provide competitive prices on the premise of ensuring product quality, so that customers can obtain products and services with high cost performance.
  5. Wealthy industry experience: Wenpeng Machinery Company has many years of experience in the machinery industry, has accumulated rich industry knowledge and technical experience, and can provide customers with professional solutions and consulting services.

In summary, the advantages of Wenpeng Machinery Company are strong technical strength, reliable product quality, perfect after-sales service, reasonable price, and rich industry experience. These advantages make Wenpeng Machinery Company competitive in the market and able to meet customer needs.
