Contact Supplier

Mr. Wen
Leave a messagePayment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF,EXW |
Min. Order: | 1 Set/Sets |
Basic Info
Model No.: WL1200
Brand: Wenpeng
Applicable Industry: Home Use, Farms, Construction Works, Energy &Amp; Mining, Building Material Shops
Out-of-warranty Service: Video Technical Support, Online Support
Place Of Origin: China
Types Of: Front Loader, Mini Loader
Exercise: Wheel Loader
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Rated Load: 1.2Ton
Bucket Rated Capacity: 0.38m³
Status: New
Additional Info
Transportation: Ocean
Place of Origin: China
Supply Ability: 1000sets/month
Certificate: CE
Port: Qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product Description

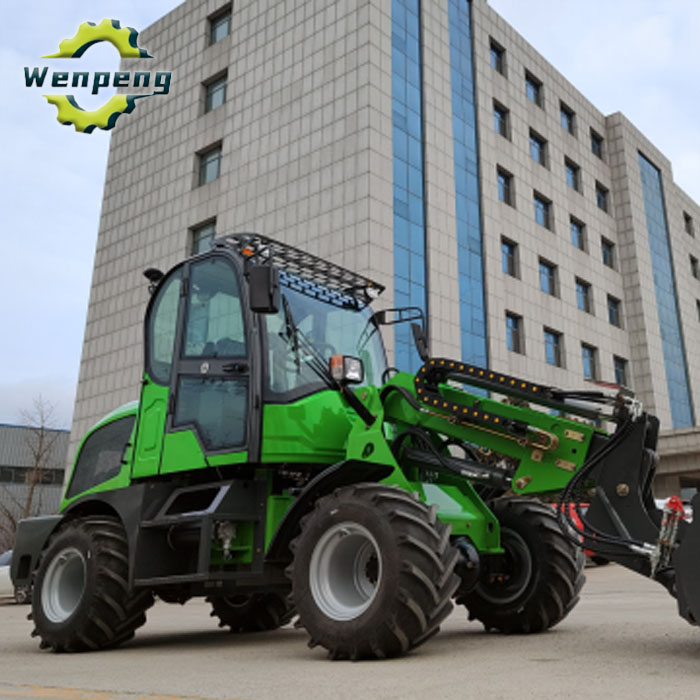

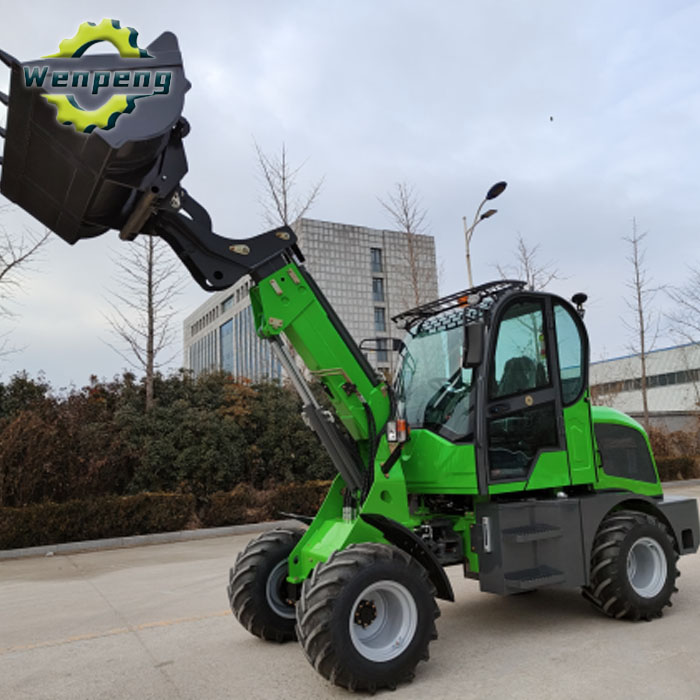

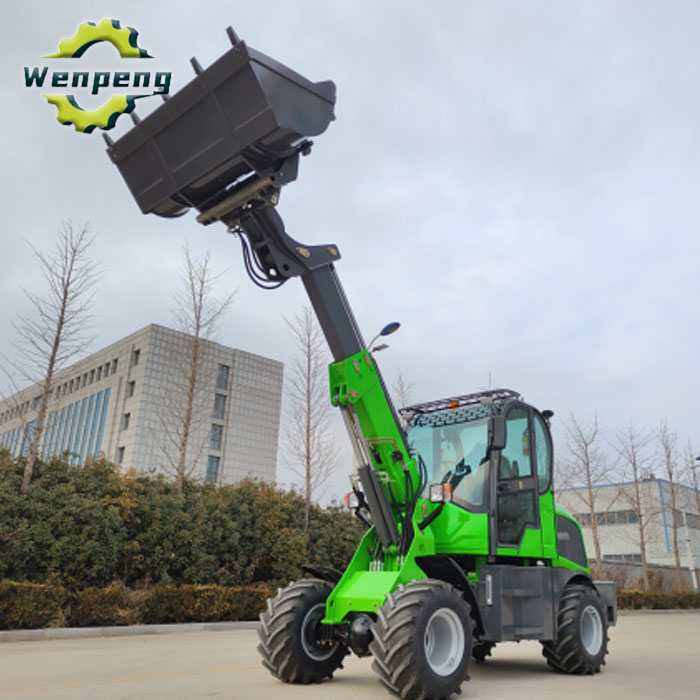

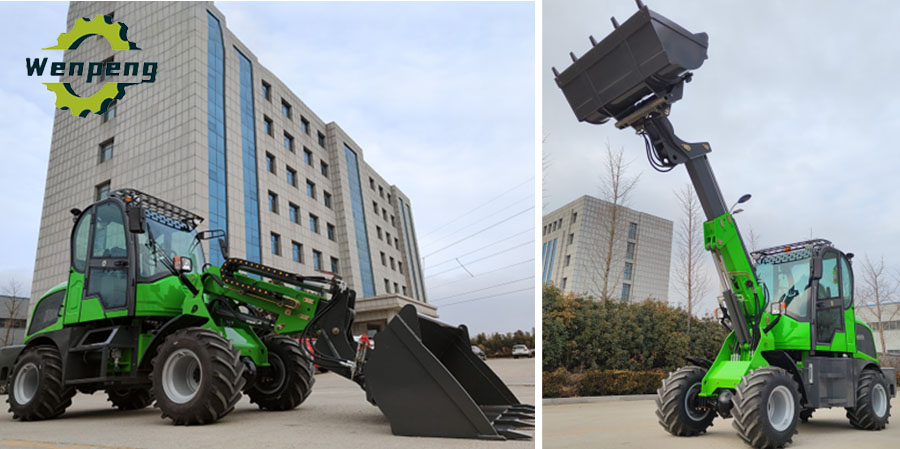

This 1.2-ton small electric wheel loader is an efficient and versatile construction machine that can meet the diverse needs of modern gardening and small construction projects, making it an ideal equipment for enhancing work efficiency.
Parameter | Value |
---|---|
Max Rated Load (ton) | 1.2 |
Bucket rated capacity (m³) | 0.38 |
Primary loading height (mm) | 3490 |
Maximum dump height (mm) | 2220 |
Secondary loading height (mm) | 3945 |
Maximum dump height (mm) | 2705 |
Max. Grade ability (%) | 20 |
Oscillation angle (°) | 8 |
Overall dimensions (L×W×H) (mm) | 5190 × 1600 × 2500 |
Bucket width (overall width) (mm) | 1520 |
Wheelbase (mm) | 1220 |
Minimum ground clearance (mm) | 220 |
Net weight (kg) | 3530 |
Battery model no. | 3-EVF-200A |
Battery capacity (Ah) | 200 |
Number of battery groups | 24 |
Rated voltage (V) | 72 |
Working hours (h) | 6-8 |
Hydraulic system | Motor no.: YQP5.72AF.48P |
Voltage (V) | 72 |
Power (W) | 5000 |
Displacement (ml/r) | 18 |
Tyres | Type: 31*15.5-15 Working pressure (MPa): 0.3 Quantity: 4 |
Product Categories : Constrction Machine And Truck > Wheel Loader
