| Unit Price: | USD 10000 / Piece/Pieces |
|---|---|
| Payment Type: | L/C,T/T |
| Min. Order: | 1 Piece/Pieces |
Basic Info
Model No.: WP-S12
Warranty Service: 1 Year
After-sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts
Additional Info
Packaging: exported packing
Transportation: Ocean,Land
Supply Ability: 1000 pcs/ month
Port: SHANGHAI
Payment Type: L/C,T/T
Product Description
The company's main products include excavators, loaders, skid steer loaders, aerial work platforms, mobile aerial work platforms, truck-mounted aerial work platforms, and Aerial Work Platform accessories, among others. The product range is comprehensive, catering to users of all ages and varying needs. The company boasts a professional R&D team that continuously introduces new products to meet market demands.

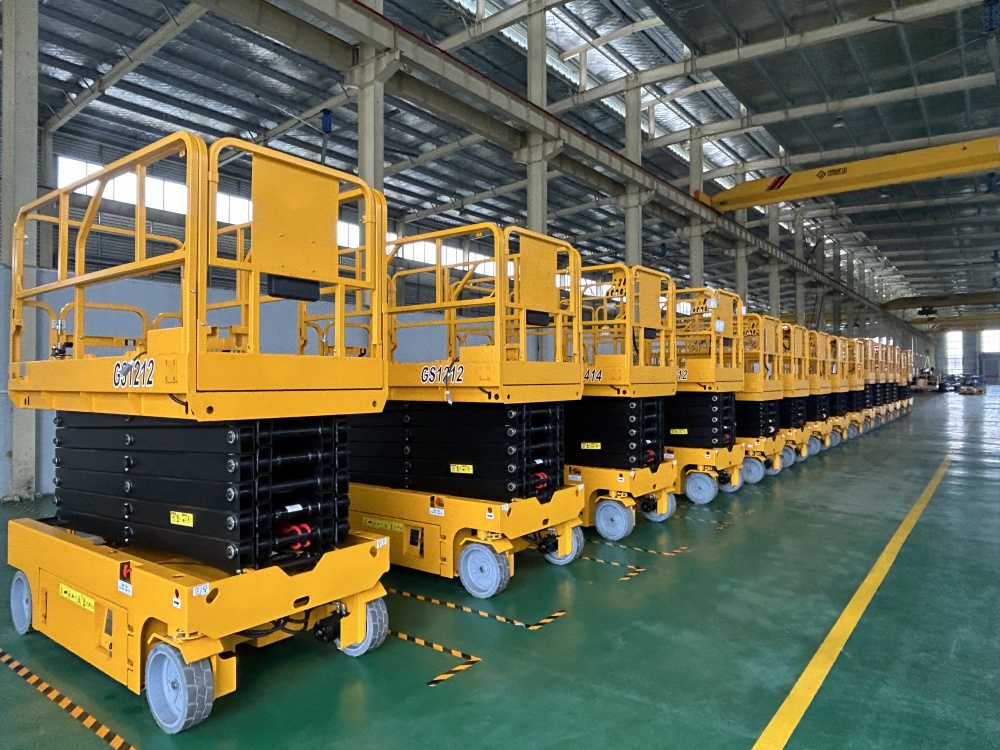

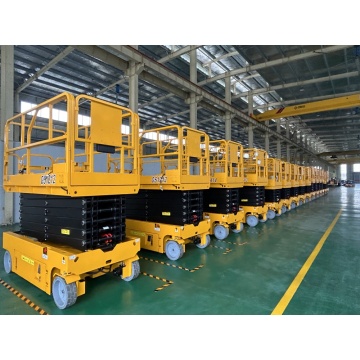

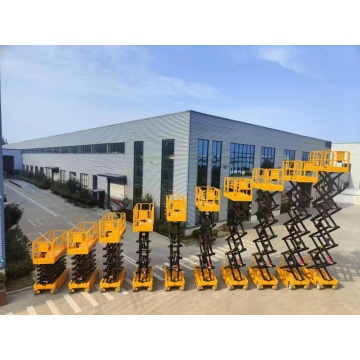

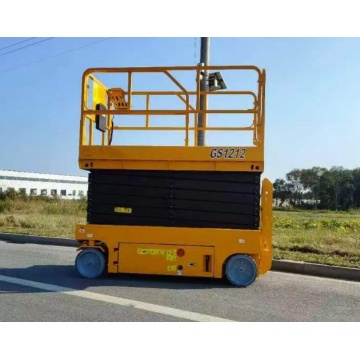

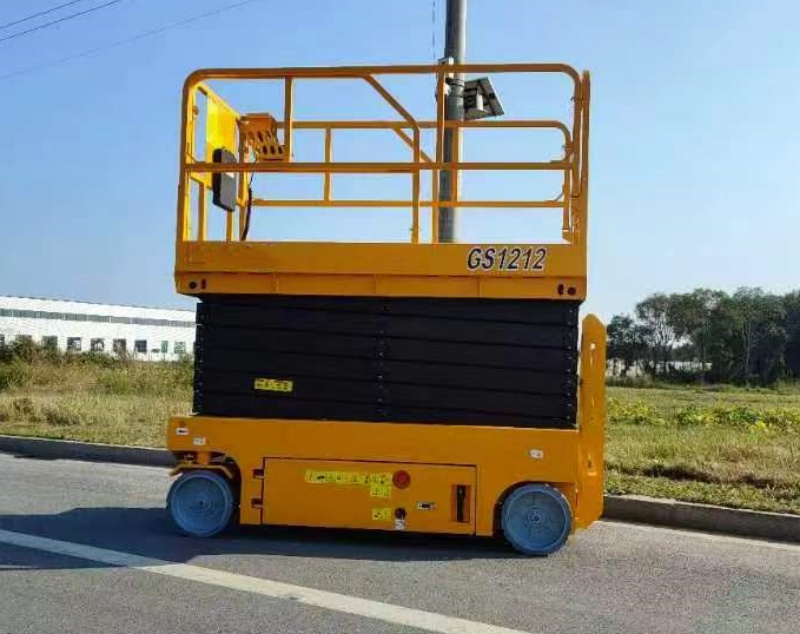

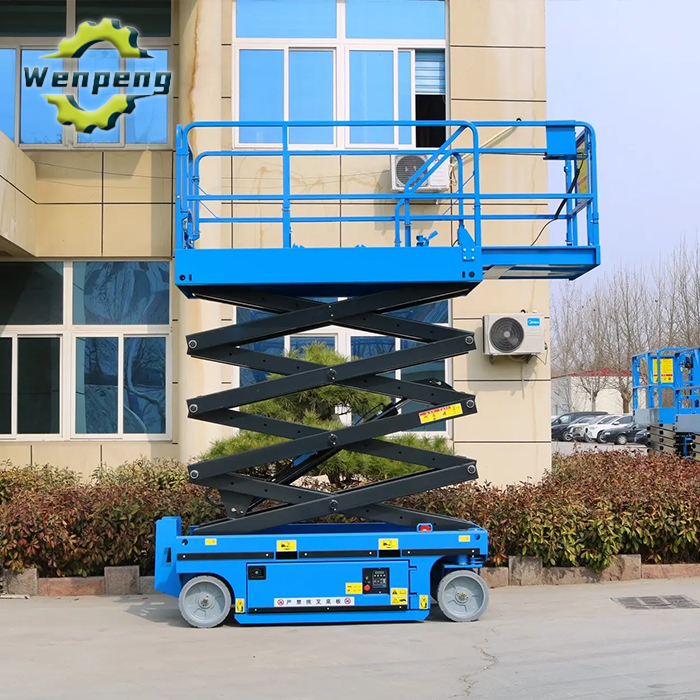

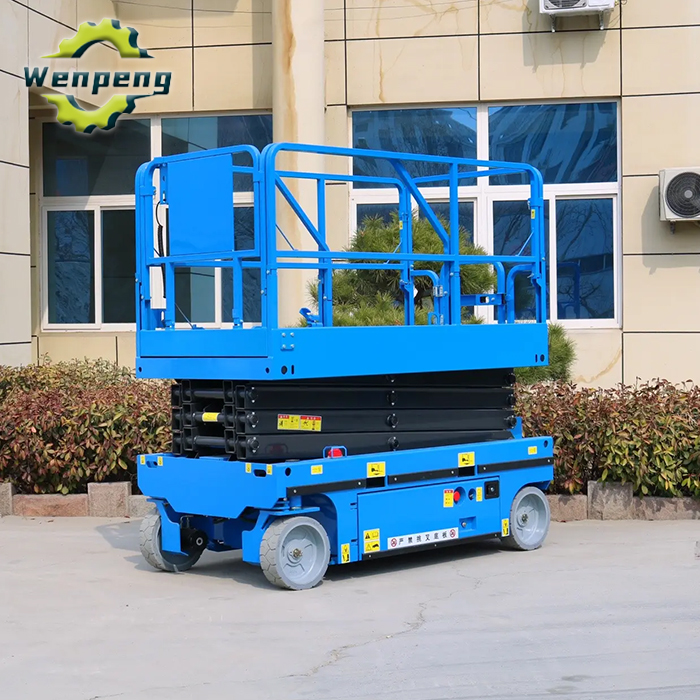

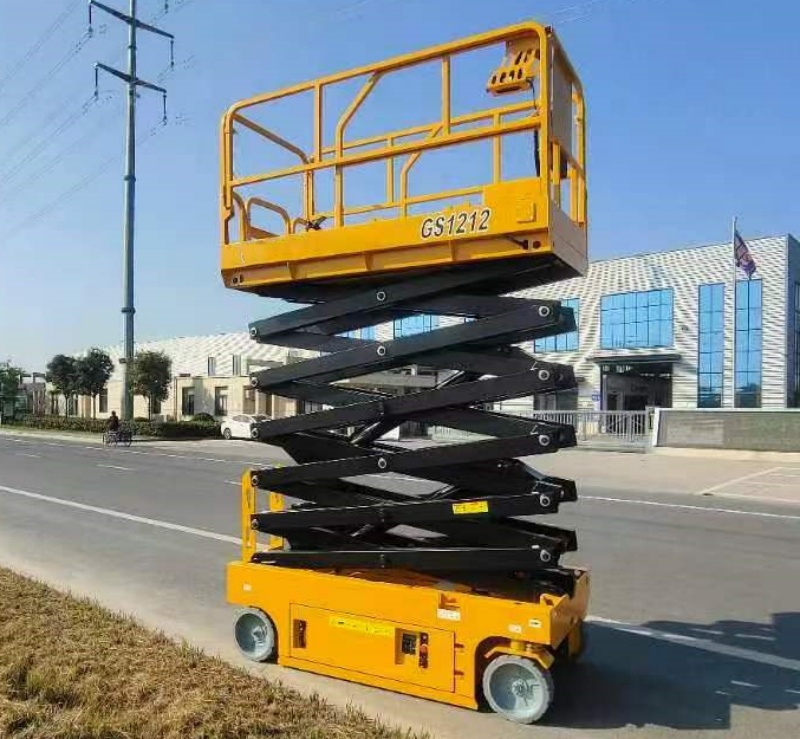

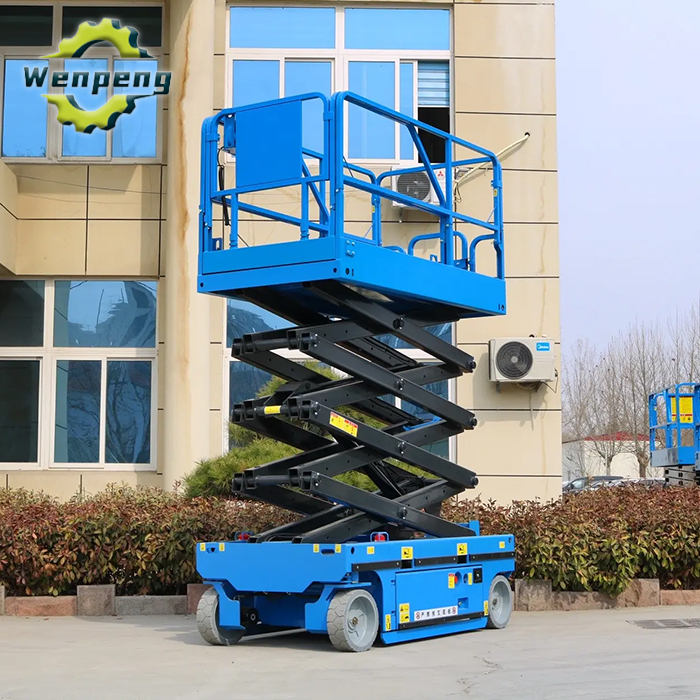

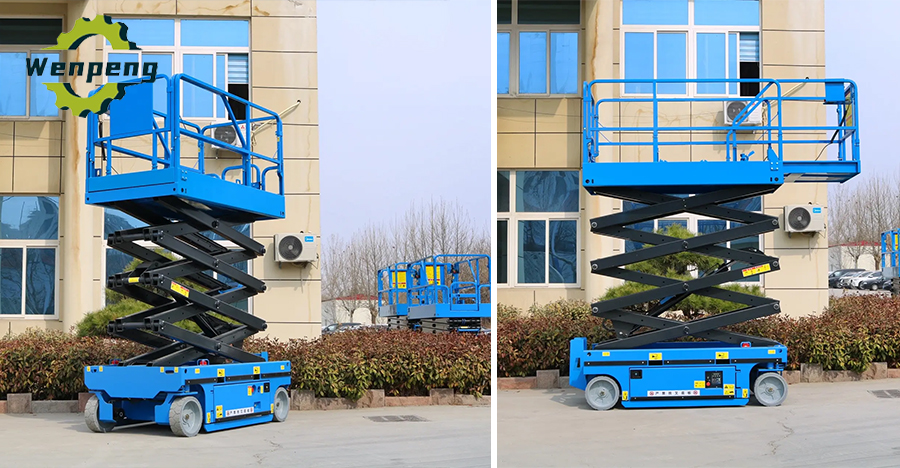

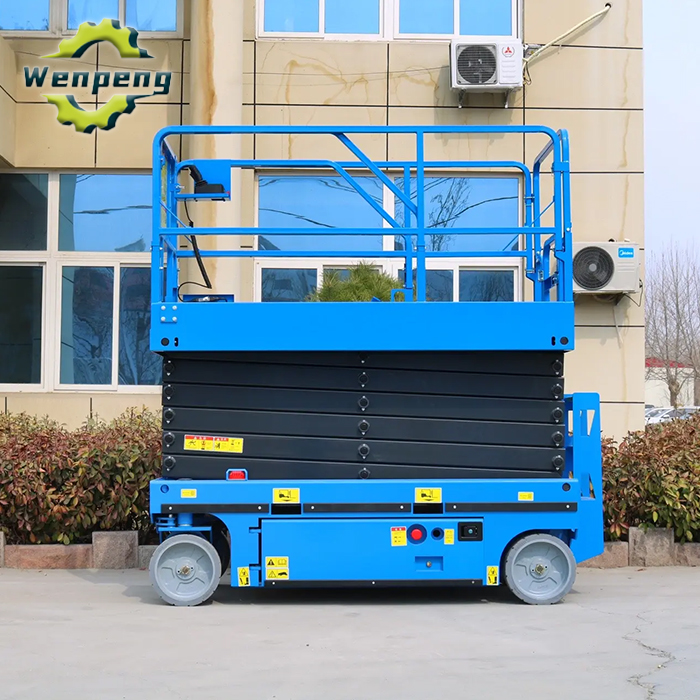

The scissor fork aerial vehicle is a specialized lifting equipment characterized by the following features:
| Model | SS1212 |
|---|---|
| Size | |
| Max. Working Height | 13.9 m |
| Max. Platform Height | 11.9 m |
| Overall Length | 2.4 m |
| Overall Width | 1.15 m |
| Overall Height (Rails Up) | 2.60 m |
| Overall Height (Rails Folded) | 1.96 m |
| Platform Dimension (Length × Width) | 2.29 × 1.15 m |
| Platform Extension Dimension | 1.0 m |
| Wheelbase | 1.85 m |
| Ground Clearance (Stowed) | 95 mm |
| Ground Clearance (Raised) | 20 mm |
| Performance | |
| Max. Working Persons | 2 persons |
| Rated Load | 320 kg |
| Lift Capacity - Extension Deck | 120 kg |
| Travel Speed (Stowed) | 3.2 km/h |
| Travel Speed (Raised) | 0.8 km/h |
| Raise/Lower Time | 52/52 s |
| Gradeability (Stowed) | 25% |
| Turning Radius (Inside) | 0 |
| Turning Radius (Outside) | 2.2 m |
| Max. Working Slope | 3°/1.5° |
| Control | Proportional |
| Driver | 2WD, precursor |
| Brake | 2 rear wheels |
| Tyre Size | 381 × 129 mm |
| Power | |
| Battery | 24 V DC, 300Ah |
| Charger | 100-240V 36A |
| Lifting Motor | 24V/4.5 kW |
| Driving Motor | / |
| Hydraulic Pump Capacity | 35 L |
| Weight | |
| Total Weight | 3050 kg |
Product Categories : Constrction Machine And Truck > Aerial Work Platform
