| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Set/Sets |
Basic Info

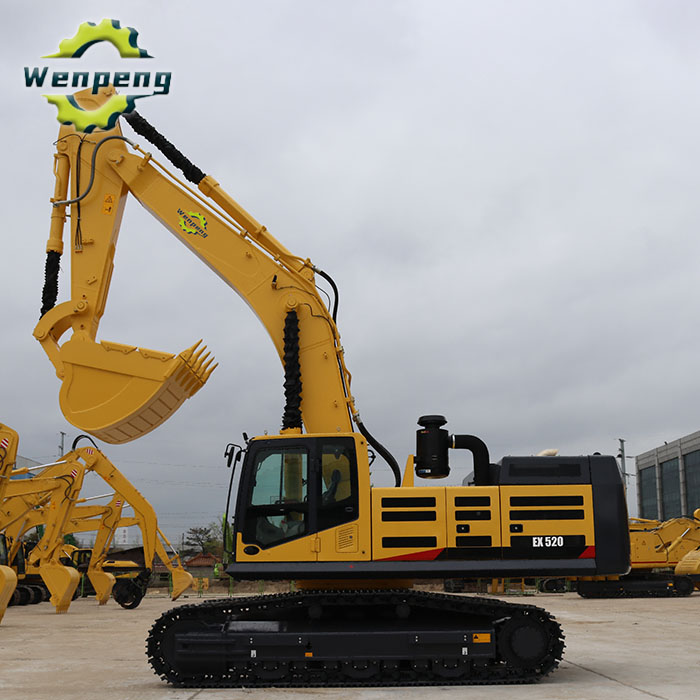

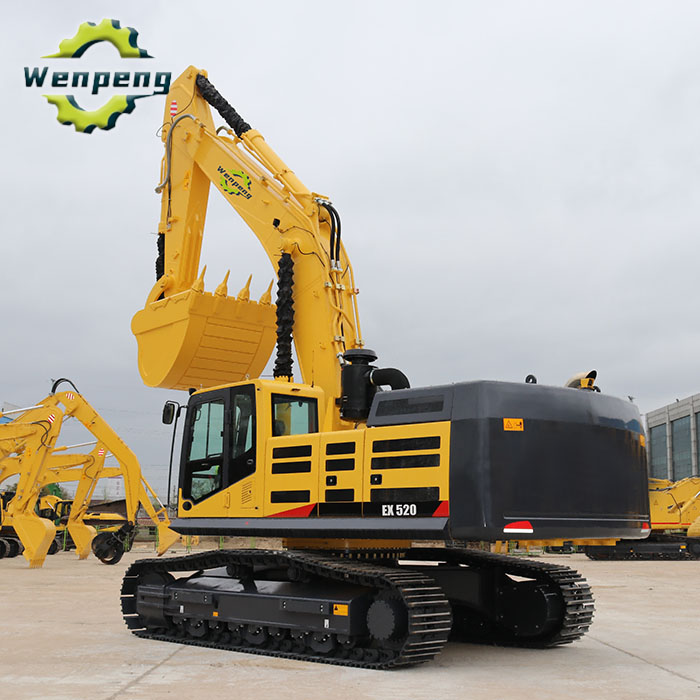

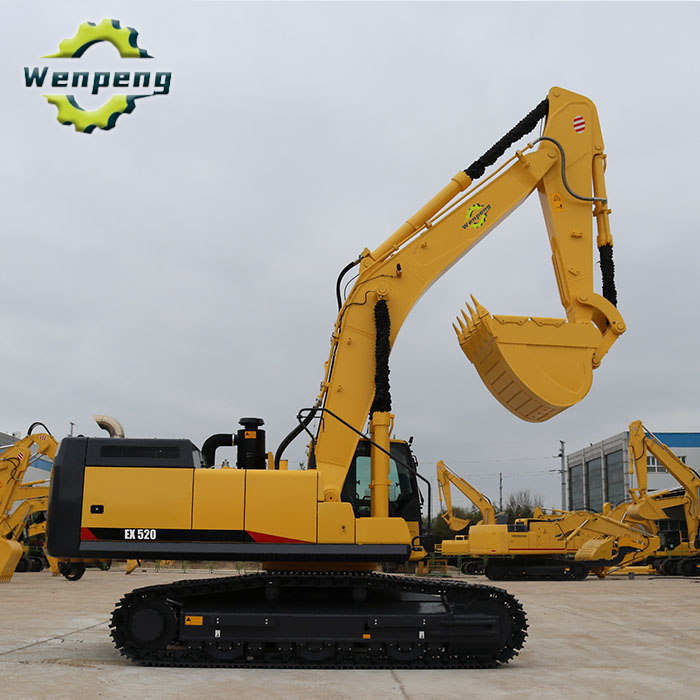

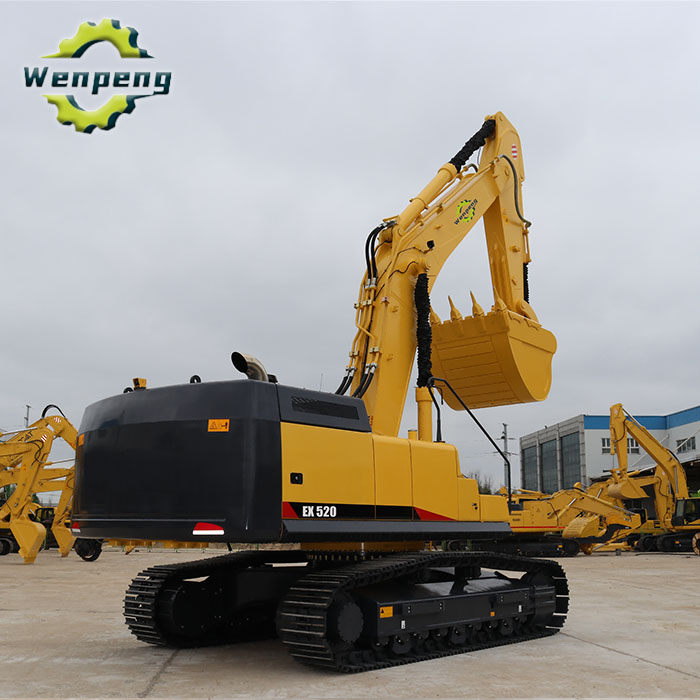

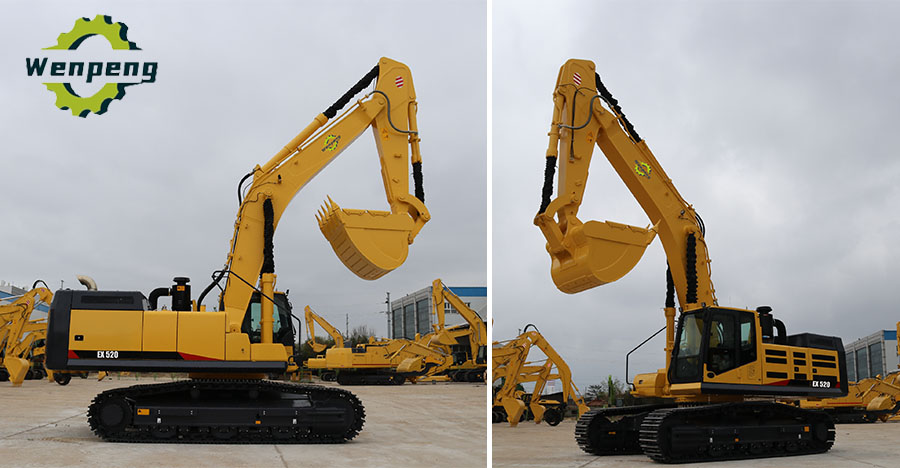

Model No.: EX520
Brand: Wenpeng
Applicable Industry: Building Material Shops, Machinery Repair Shops, Farms, Construction Works, Energy &Amp; Mining, Other
Out-of-warranty Service: Video Technical Support, Online Support
Place Of Origin: China
Status: New
Exercise: Crawler Excavator
Warranty Period: 1 Year
Engine Brand: Isuzu
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year
Operating Mass: 50T
Bucket Capacity: 2.3-3m³
Additional Info
Productivity: 100sets/month
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 100sets/month
Certificate: CE
Port: Qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product Description
| Model | EX520 |
| Engine model | ISUZU6WG1X |
| Working mass | 50T |
| Bucket capacity | 2.3-3m³ |
| Power | 300/1800kw/r/min |
| Volume of fuel tank | 700L |
| Travel speed (High/Low) | 5.1/2.9 km/h |
| Swing speed | 8.1 r/min |
| Gradeability | 35 |
| Digging force of bucket | 286KN |
| Digging force of stick | 293KN |
| Specific pressure of ground contact | 85Kpa |
| Traction | 412.4KN |
| Maximum flow | 381*2 L/min |
| Working pressure | 34.3Mpa |
| Volume of hydraulic fluid tank | 450L |
| A-Overall length | 11885mm |
| B-Overall Width | 3490mm |
| C-Overall height(tope of boom) | 3820mm |
| D-Overall height(tope of cab) | 3280mm |
| E-Gap from counterweight to ground | 1300mm |
| F-Min ground clearance | 570mm |
| G-Tail swing radius | 3876mm |
| H-Length of track on ground | 4360mm |
| J-Track length | 5388mm |
| K-Gauge | 2740mm |
| L-Width of track | 3340mm |
| M-Width of track shoe | 600mm |
| N-Width of turning table | 3315mm |
| O-Max. digging height | 9637mm |
| P-Max. dumping height | 6634mm |
| Q-Max. digging depth | 6435mm |
| T-Max. digging distance | 10517mm |
| U-Max. digging distance at plane | 10281mm |
| V-Min. swing radius | 4580mm |
| W-Max height at min swing radius | 9047mm |
| X-Distance from center of swing to rear end | 3876mm |
| Y-Thickness of track grouses | 36mm |
| Z-Height of counterweight | 2950mm |
| Ground Contact length (in transportation) | 7450mm |
| Length of stick | 2500mm |
| Length of boom | 6500mm |
