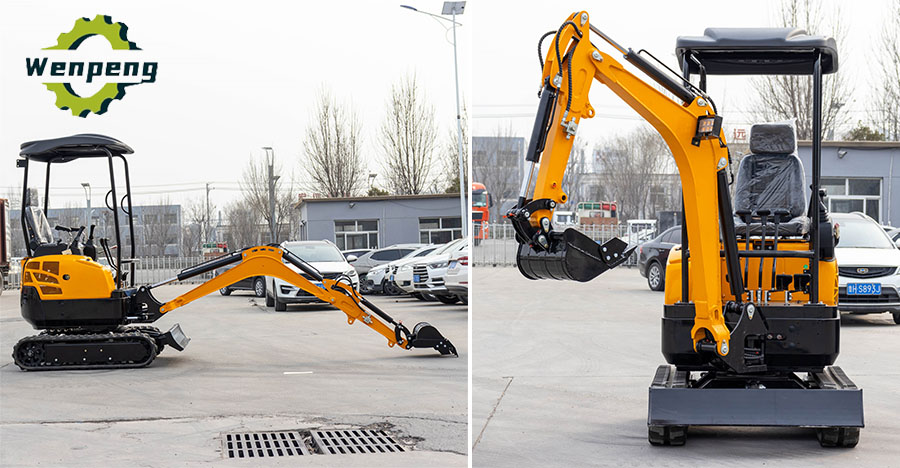

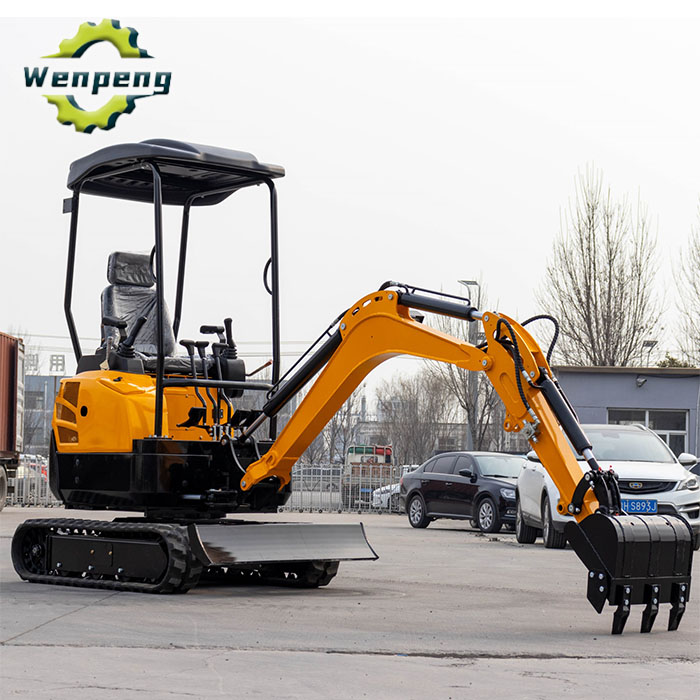

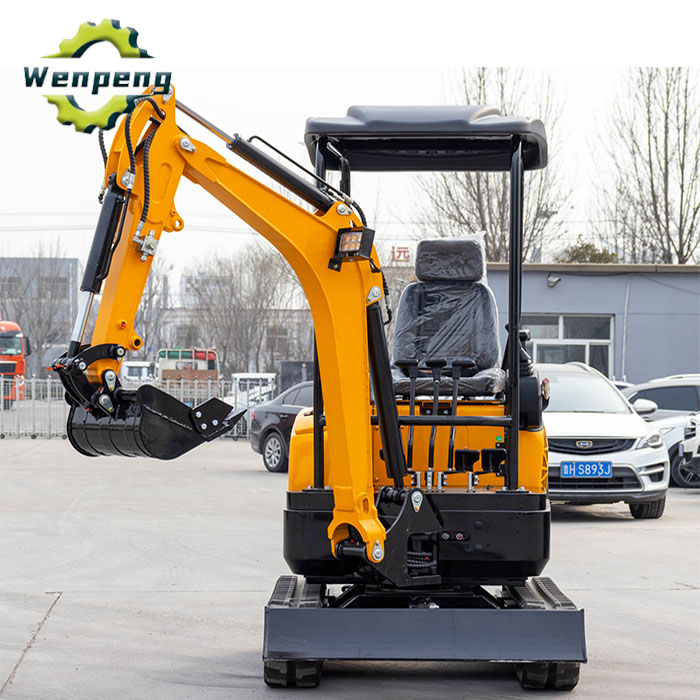

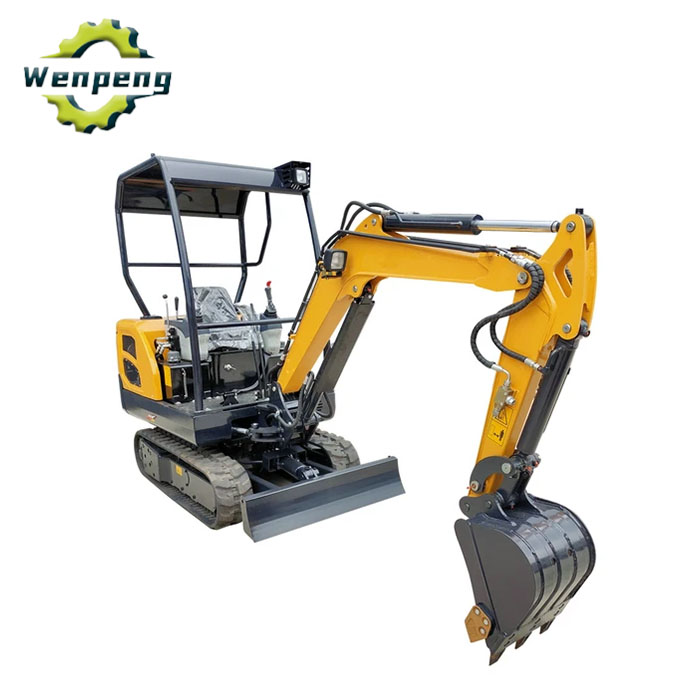

CE Certified 7 Ton Mini Hydraulic Crawler Excavator
CE Certified 7 Ton Mini Hydraulic Crawler Excavator
CE Certified 7 Ton Mini Hydraulic Crawler Excavator
CE Certified 7 Ton Mini Hydraulic Crawler Excavator
  • CE Certified 7 Ton Mini Hydraulic Crawler Excavator
  • CE Certified 7 Ton Mini Hydraulic Crawler Excavator
  • CE Certified 7 Ton Mini Hydraulic Crawler Excavator
  • CE Certified 7 Ton Mini Hydraulic Crawler Excavator

CE Certified 7 Ton Mini Hydraulic Crawler Excavator

    Payment Type: T/T,L/C
    Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,DDP,DDU
    Min. Order: 1 Piece/Pieces
Contact Now

Basic Info

Model No.EX-17

BrandWenpeng

Applicable IndustryHotels, Home Use, Energy &Amp; Mining, Machinery Repair Shops, Building Material Shops, Farms, Construction Works

Out-of-warranty ServiceVideo Technical Support, Online Support

Place Of OriginChina

StatusNew

ExerciseCrawler Excavator

Warranty Period1 Year

Engine BrandKubota

Mechanical Test ReportProvided

Video Factory InspectionProvided

Core ComponentsEngine, Pump

Operating Weight1.7Ton

Bucket Capacity0.025m³

Additional Info

PackagingExport wooden box packaging

TransportationOcean,Land

Place of OriginChina

CertificateCE

PortQingdao

Payment TypeT/T,L/C

IncotermFOB,CFR,CIF,EXW,FCA,CPT,DDP,DDU

Product Description

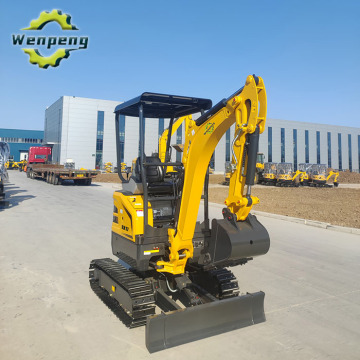

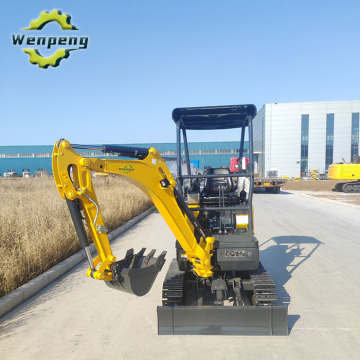

1.7Ton Mini Hydraulic Crawler Excavator CE Approved

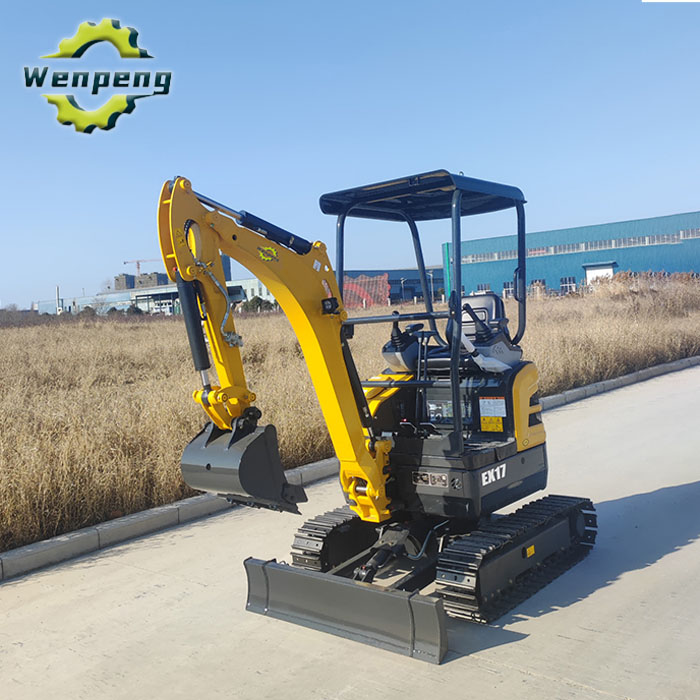

1.7 Ton Mini Hydraulic Crawler Excavator

CE certified and designed for small spaces and light engineering, the 1.7-ton mini hydraulic crawler excavator combines excellent digging ability and flexibility, suitable for various earthwork operations.

  • Municipal construction: pipeline laying, foundation excavation, small road construction, etc.
  • Landscaping: tree transplantation, flower bed excavation, gardening design, etc.
  • Construction: foundation excavation and earthwork of small houses.
  • Agriculture and forestry: farmland preparation, canal excavation, and forest maintenance.
  • Repair and maintenance: suitable for maintenance and repair of urban facilities.

Features

  • Compact Design: The 1.7-ton mini hydraulic crawler excavator is compact and can rotate 360°, making it convenient for multi-directional excavation in limited space.

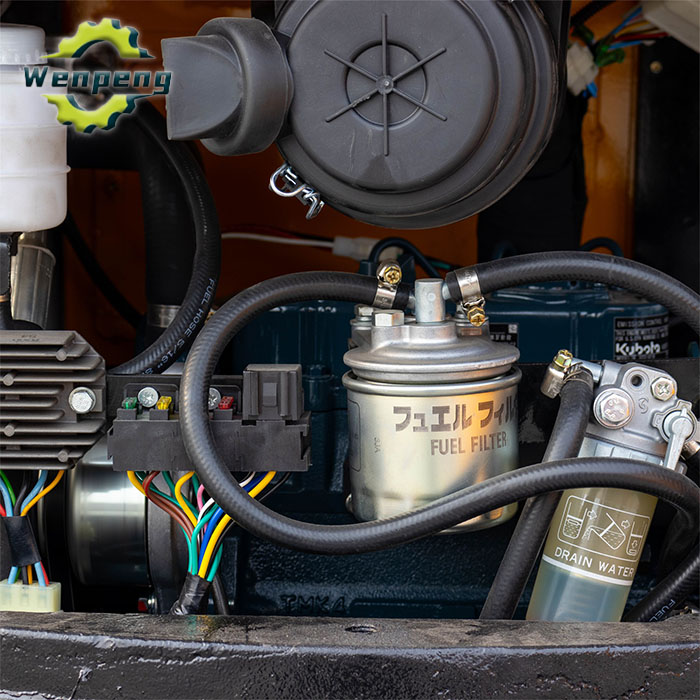

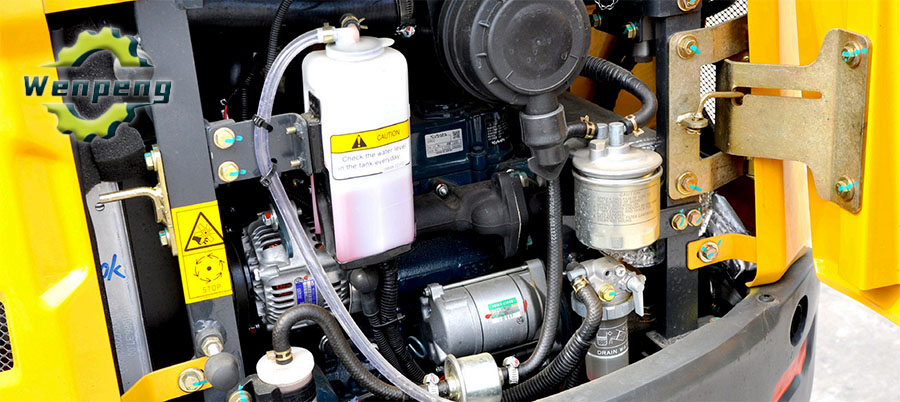

  • Efficient Power System: Equipped with an efficient Kubota engine to ensure strong working performance and reliability. The optimized hydraulic system improves working efficiency and reduces fuel consumption.
  • Comfortable Operating Environment: The cab design is ergonomic, spacious, and provides a good view. Equipped with a modern operating interface and comfortable seats to reduce fatigue.
  • Excellent Safety: The 1.7-ton mini crawler excavator is equipped with a rubber crawler chassis and has a reliable anti-overturning design and stability.
  • Versatility: This crawler excavator has a quick-change design and is compatible with various excavation and loading attachments, such as buckets, grabs, forks, breakers, mowers, etc., allowing for convenient and flexible switching of working tools to meet different operational needs.

Parameters

Model EX-17
Bucket Capacity 0.025m³
Swing Speed 0-13rpm
Gradeability 30°
Max. Bucket Digging Force 9kN
Max. Arm Digging Force 5.5kN
Engine Model Kubota D722
Power/Revolution Speed 18.8kW
System Pressure 18MPa
Dimension 2900*1100*1500mm
Cabin Height 1600mm
Axle Base 1200mm
Wheel(track)Distance 800mm
Min Ground Clearance 170mm
Tail Swing Radius 750mm
Max. Digging Height 2550mm
Max. Dumping Height 1850mm
Max. Digging Depth 1800mm
Max. Vertical Digging Depth 1650mm
Max. Digging Radius 2300mm
Min. Swing Radius 1650mm

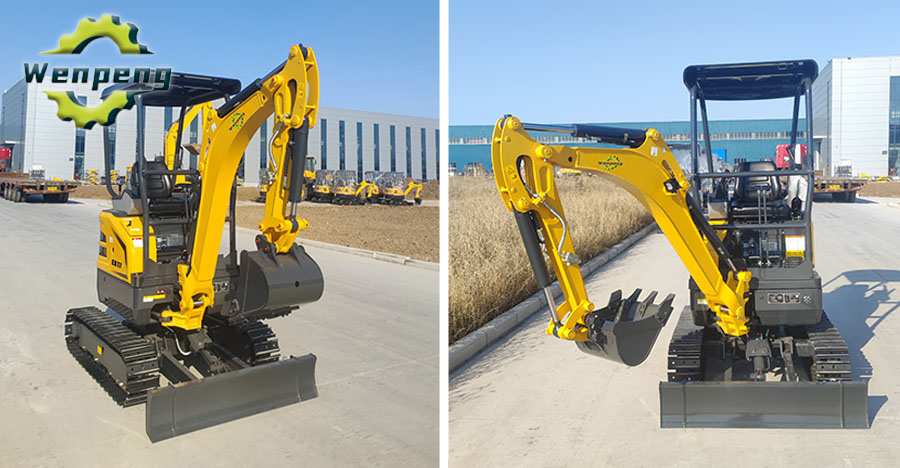

1.7 ton mini hydraulic crawler excavator photo1

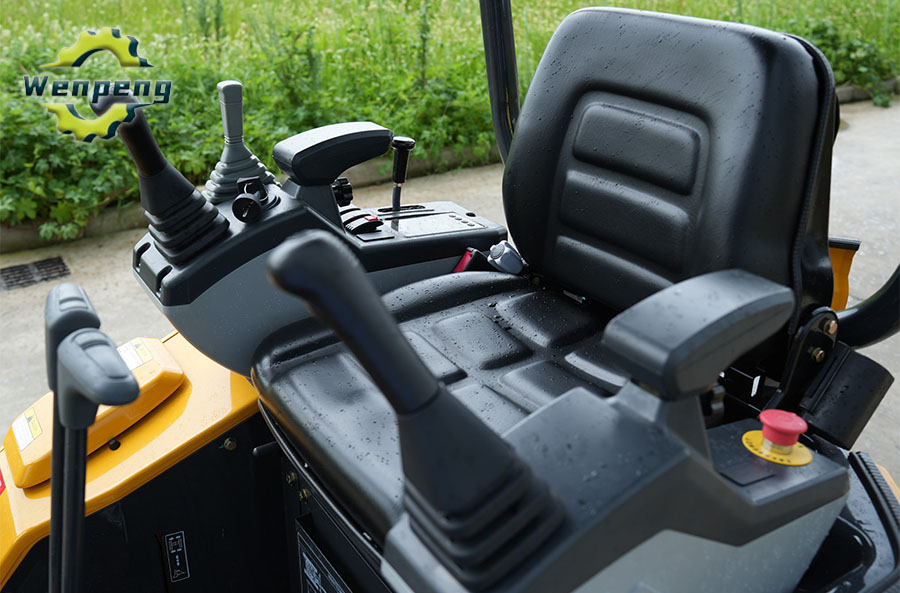

1.7 ton mini hydraulic crawler excavator photo2
